FCMX 100616-HFG TT8115B

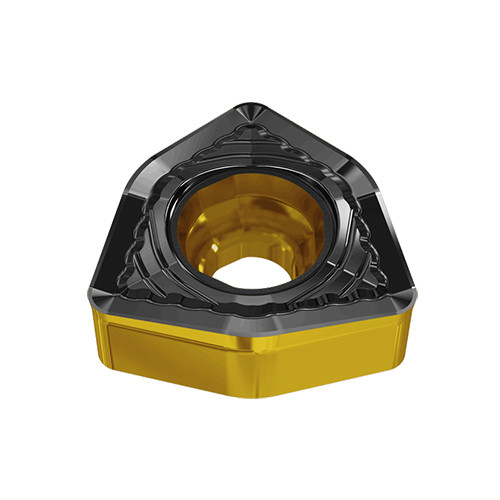

Trigonal positive insert for bi-directional high-feed turni ng of steel and stainless steel with low cutting force
| Applicable Material | | Steel | | Grade | TT8115B |
| Application | | Ext 15° App 90°Trigon | High Feed & All directional Turning | Inserts | | Min D.O.C. | 0.5 mm |

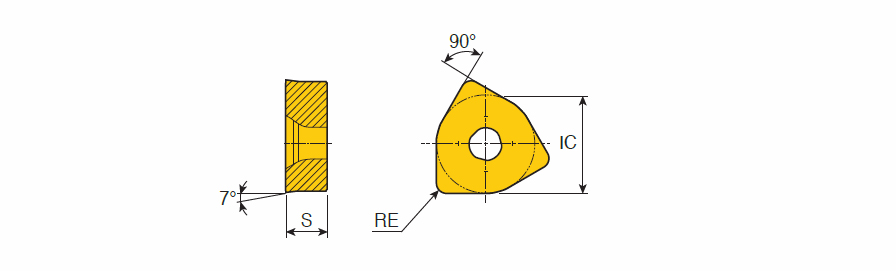

| Corner Radius (RE) | 1.6 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 9.8 mm | Min. Turning Feed (ft(min)) | 1.5 mm/rev |
| Insert Thickness (S) | 6.5 mm | Max. Turning Feed (ft(max)) | 3 mm/rev |
| Inscribed Circle Diameter (IC) | 15.45 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Product Features
| Family Description | Trigonal positive insert for bi-directional high-feed turni ng of steel and stainless steel with low cutting force | FamilyName | FCMX-HFG |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0177
Name
Turning Indexable Inserts
FamilyName
FCMX-HFG
BrandName
Taegutec
