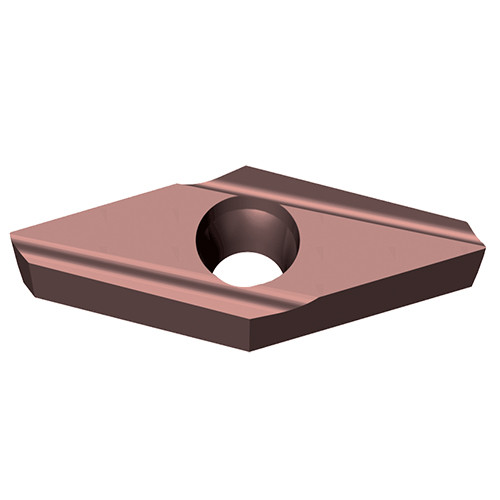

BTVC 110302MR-F TT4430
Laydown type Back turning inserts with ground chip breaker & sharp cutting edge for general purpose of small parts on swiss type automatic lathes
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Min D.O.C. | 0.1 mm |
| Application | | Ext 53° App 35°Diamond | Inserts | Tools for Swiss Machines | | Depth of Cut Maximum (APMX) | 3.5 mm |

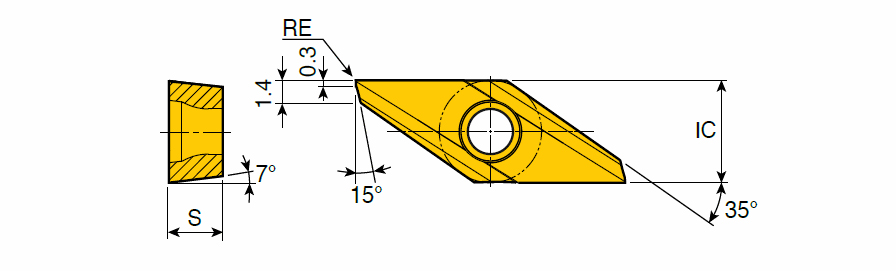

| Corner Radius (RE) | 0.2 mm | Min. Turning Feed (ft(min)) | 0.01 mm/rev |
| Insert Thickness (S) | 3.18 mm | Max. Turning Feed (ft(max)) | 0.15 mm/rev |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Multi AlTiCrN | Unit | M |
| Grade | TT4430 |
Product Features
| Family Description | Laydown type Back turning inserts with ground chip breaker & sharp cutting edge for general purpose of small parts on swiss type automatic lathes | FamilyName | BTVC R-F |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0036
Name
Turning Indexable Inserts
FamilyName
BTVC R-F
BrandName
Taegutec
