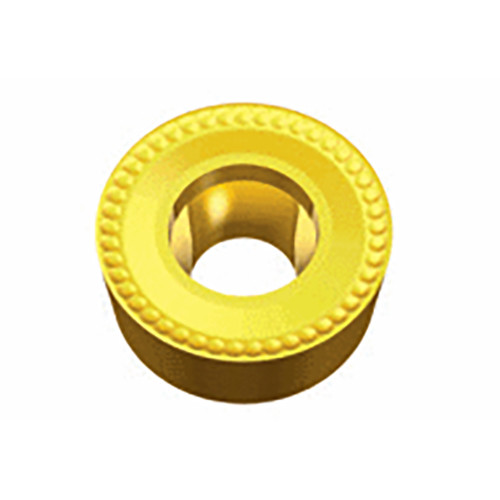

RCMT 080300 MT TT8115B
Positive Round inserts with 7° clearance angle for medium to medium rough applications of steel, stainless steel and cast iron
| Applicable Material | | Steel | | Min D.O.C. | 0.5 mm |
| Application | | Ext Neutral Round | Ext Profile Round | Inserts | | Depth of Cut Maximum (APMX) | 3 mm |
| Insert Thickness (S) | 3.18 mm | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Inscribed Circle Diameter (IC) | 8 mm | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | TT8115B | Unit | M |
| Fixing Hole Diameter (D1) | 3.4 mm |
Product Features
| Family Description | Positive Round inserts with 7° clearance angle for medium to medium rough applications of steel, stainless steel and cast iron | FamilyName | RCMT-MT |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0026
Name
Turning Indexable Inserts
FamilyName
RCMT-MT
BrandName
Taegutec
