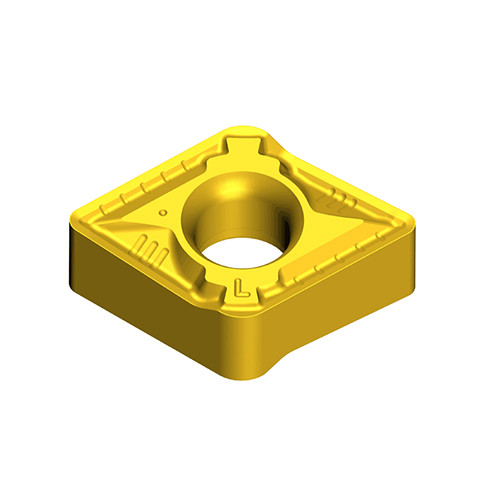

XNMV 110508L-BS TT8115B
70° corner angle double-sided 4 cutting edge insert for deepdepth of cut forward turning and high feed back turning in super alloy steel machining.
| Applicable Material | | Steel | | Grade | TT8115B |
| Application | | Ext15(BWT)&95(FWT) 80°triangul | High Feed & All directional Turning | Inserts | | Min D.O.C. | 0.5 mm |

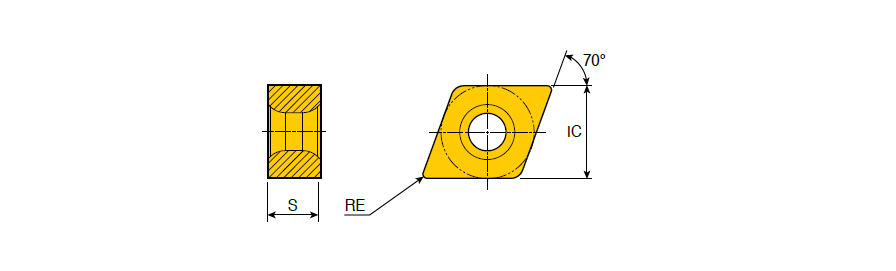

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 1.8 mm |
| Cutting Edge Length (L) | 11.82 mm | Min. Turning Feed (ft(min)) | 0.4 mm/rev |
| Insert Thickness (S) | 5.56 mm | Max. Turning Feed (ft(max)) | 0.8 mm/rev |
| Inscribed Circle Diameter (IC) | 11.11 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Product Features
| Family Description | 70° corner angle double-sided 4 cutting edge insert for deepdepth of cut forward turning and high feed back turning in super alloy steel machining. | FamilyName | XNMV 1105..R/L-BS |

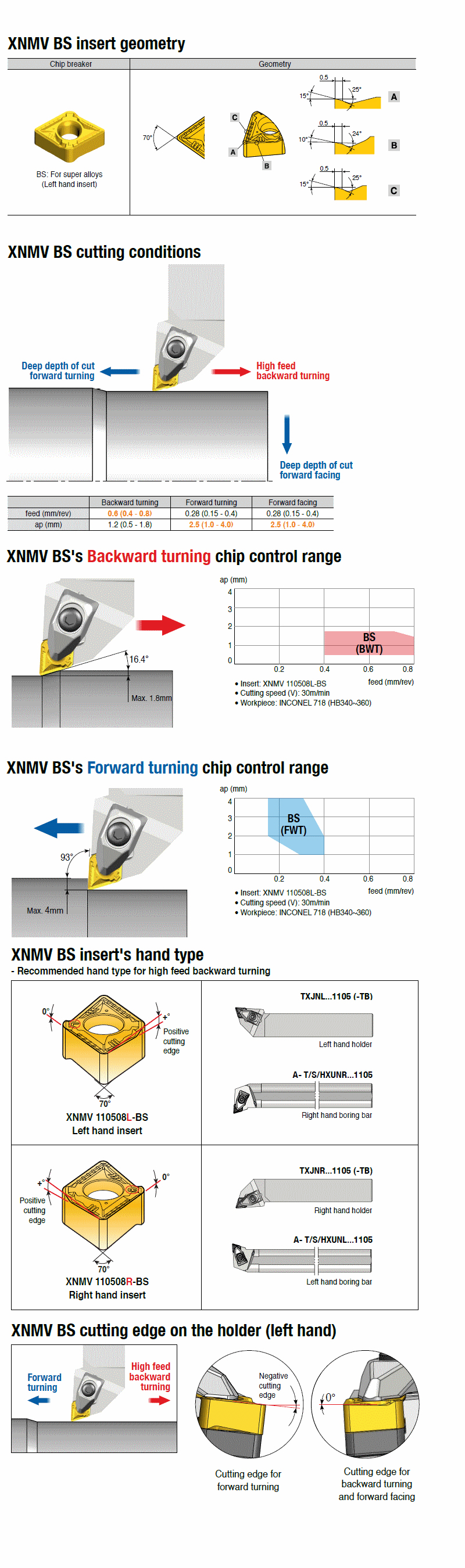

| Remarks | ap & ft are backward turning conditions Forward turning conditions: ap(min)=1.0, ap(max)=4.0, ft(min)=0.15, ft(max)=0.40 Apply L insert to L holder and R boring bar Apply R insert to R holder and L boring bar | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0310
Name
Turning Indexable Inserts
FamilyName
XNMV 1105..R/L-BS
BrandName
Taegutec
