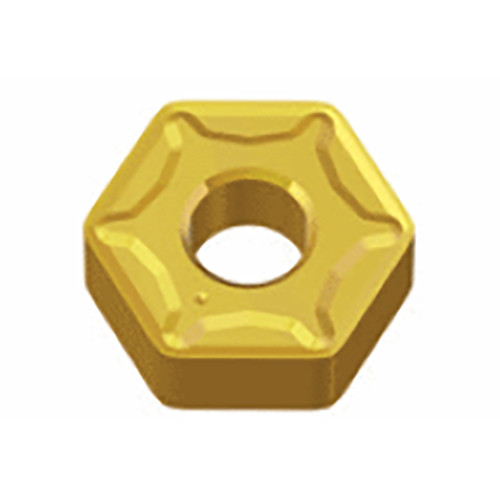

HNMG 100612 GU TT8125B

Negative 120° Hexagonal inserts for medium applications of steels and cast irons

Item # TTK6241742

Brand: Taegutec

Mfr#: 6241742

Applicable Material	\| Steel \|	Grade	TT8125B
Application	\| Ext 45° App 120° Hxagonal \| Inserts \| Int 45° App 120° Hexagonal \|	Min D.O.C.	1 mm

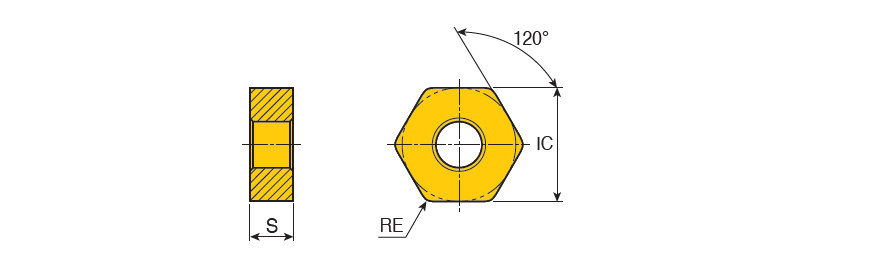

Corner Radius (RE)	1.2 mm	Depth of Cut Maximum (APMX)	5 mm
Cutting Edge Length (L)	6.2 mm	Min. Turning Feed (ft(min))	0.25 mm/rev
Insert Thickness (S)	6.35 mm	Max. Turning Feed (ft(max))	0.7 mm/rev
Inscribed Circle Diameter (IC)	19.05 mm	Measurement Type	Metric
Cutting Edge Material	Carbide	Body Material	Carbide
Coating	TiCN+Al2O3+TiN	Unit	M

Product Features

Family Description	Negative 120° Hexagonal inserts for medium applications of steels and cast irons	FamilyName	HNMG-GU
COO	S.KOREA	BrandName	Taegutec

Weight per item

0.0280

Name

Turning Indexable Inserts

FamilyName

HNMG-GU

BrandName

Taegutec
