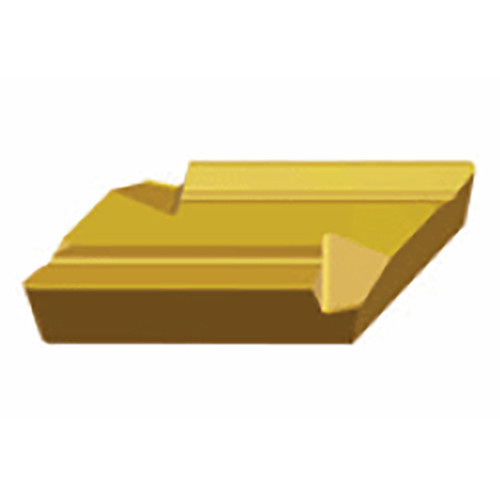

KNUX 160405 L12 TT8115B

Name: KNUX 160405 L12 TT8115B
Brand: TTURN
SKU: TTK6234843
Price: 15.10 GBP
Availability: InStock

Negative single-sided 55° Parallelogram inserts for profiling with strong cutting edges

Item # TTK6234843

Brand: Taegutec

Mfr#: 6234843

Applicable Material	\| Steel \|	Grade	TT8115B
Application	\| Ext 62.5° App 55° Diamond \| Ext 93° App 55°Diamond \| Inserts \| Int 100° App 70° Diamond \| Int 93° App 55° Diamond \|	Min D.O.C.	2 mm
Corner Radius (RE)	0.5 mm	Depth of Cut Maximum (APMX)	5 mm
Cutting Edge Length (L)	19.2 mm	Min. Turning Feed (ft(min))	0.24 mm/rev
Insert Thickness (S)	4.76 mm	Max. Turning Feed (ft(max))	0.5 mm/rev
Inscribed Circle Diameter (IC)	9.52 mm	Measurement Type	Metric
Cutting Edge Material	Carbide	Body Material	Carbide
Coating	TiCN+Al2O3+TiN	Unit	M

Product Features

Family Description	Negative single-sided 55° Parallelogram inserts for profiling with strong cutting edges	FamilyName	KNUX R/L-12
COO	S.KOREA	BrandName	Taegutec

Weight per item

0.0150

Name

Turning Indexable Inserts

FamilyName

KNUX R/L-12

BrandName

Taegutec
