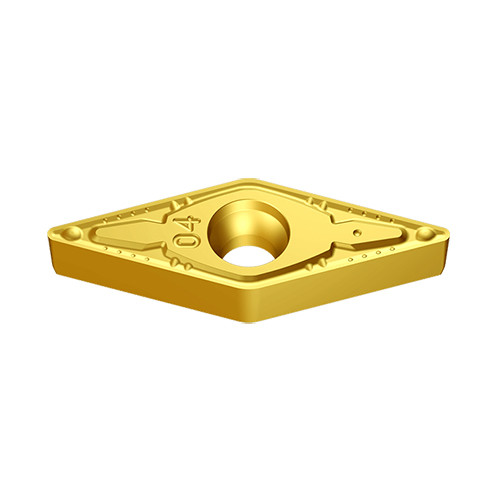

VBMT 160408 FM TT8115B

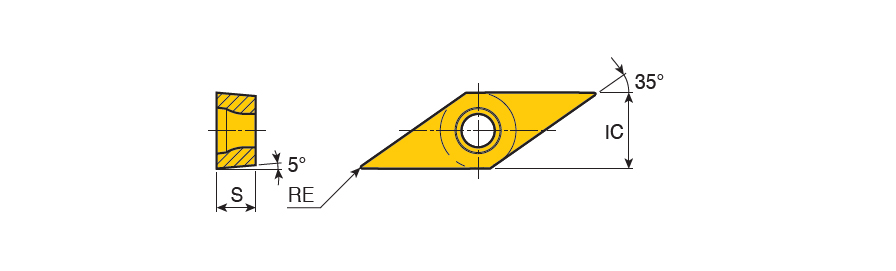

Positive 35° Rhombic inserts for medium & semi-finishing machining of steels & stainless steels with low cutting force & 5° clearance angle
| Applicable Material | | Steel | | Grade | TT8115B |
| Application | | Ext 117.5° App 35° Diamond | Ext 72.5° App 35° Diamond | Ext 93° App 35° Diamond | Ext 93° App Sleeve 35° Diamond | Ext 95° App Shift 35°Diamond | Inserts | Int 100° App 70° Diamond | Int 108° App 35° Diamond | Int 117.5 App 35° Diamond | Int 142° App 35° Diamond | Int 93° App 35° Diamond | Tools for Swiss Machines | Y Axis holders | | Min D.O.C. | 0.8 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 0 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Product Features
| Family Description | Positive 35° Rhombic inserts for medium & semi-finishing machining of steels & stainless steels with low cutting force & 5° clearance angle | FamilyName | VBMT-FM |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0070
Name
Turning Indexable Inserts
FamilyName
VBMT-FM
BrandName
Taegutec
