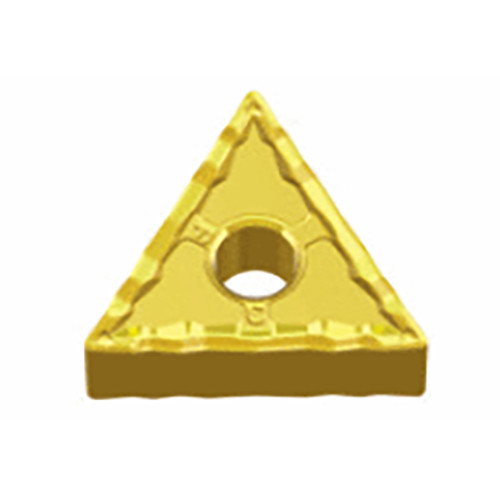

TNMG 160408 FC TT8115B
Negative 60° Triangular inserts for finish turning & facing of low carbon steel & low carbon alloy steel
| Applicable Material | | Steel | | Grade | TT8115B |
| Application | | Ext 60° App 60° Triangle | Ext 60° Neutral 60° Triangle | Ext 91° App 60° Triangle | Ext 91° App Face 60° Triangle | Ext 93° App 60° Triangle | Inserts | Int 91° App 60° Triangle | | Min D.O.C. | 0.2 mm |

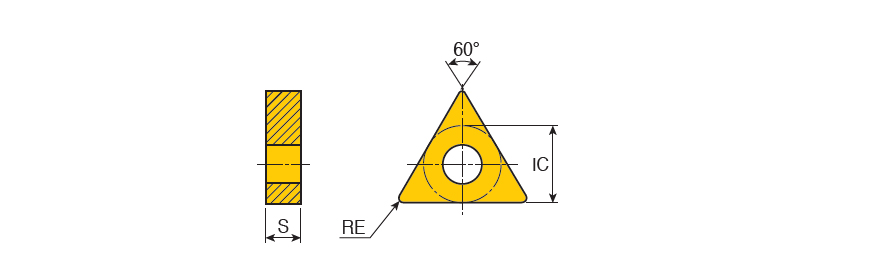

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 2.5 mm |
| Cutting Edge Length (L) | 14.5 mm | Min. Turning Feed (ft(min)) | 0.08 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.35 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Product Features
| Family Description | Negative 60° Triangular inserts for finish turning & facing of low carbon steel & low carbon alloy steel | FamilyName | TNMG-FC |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0078
Name
Turning Indexable Inserts
FamilyName
TNMG-FC
BrandName
Taegutec
