DNMG 110404 FG TT8125B
Negative 55° Rhombic inserts for finishing & semi-finishing of steels, stainless steels and cast irons
| Applicable Material | | Steel | | Grade | TT8125B |
| Application | | Ext 107.5° App 55° Diamond | Ext 62.5° App 55° Diamond | Ext 93° App 55°Diamond | Inserts | Int 100° App 70° Diamond | Int 107.5° App 55° Diamond | Int 93° App 55° Diamond | Int 93° App 70° Diamond | Int 93° App Back 55° Diamond | Int 95° App 55° Diamond | | Min D.O.C. | 0.5 mm |

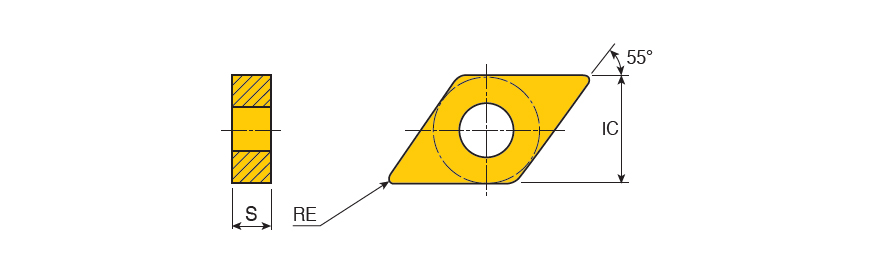

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 11.2 mm | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Product Features
| Family Description | Negative 55° Rhombic inserts for finishing & semi-finishing of steels, stainless steels and cast irons | FamilyName | DNMG-FG |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0073
Name
Turning Indexable Inserts
FamilyName
DNMG-FG
BrandName
Taegutec
