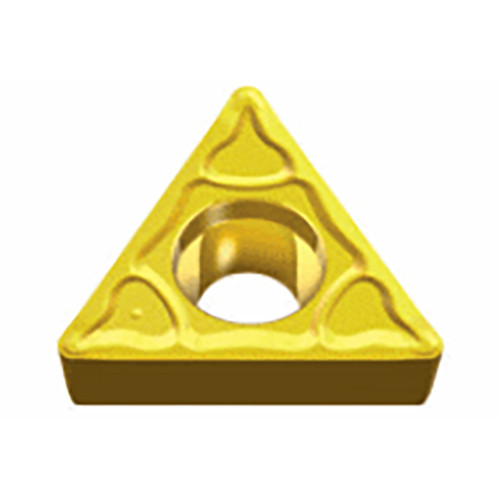

TCMT 110204 PC TT8125B
Positive Triangular inserts for medium applications of wide variety of materials with 7° clearance angle & low cutting force
| Applicable Material | | Steel | | Grade | TT8125B |
| Application | | Ext 91° App 60° Triangle | Ext 91° App Face 60° Triangle | Ext 93° App 60° Triangle | Inserts | Int 91° App 60° Triangle | Tools for Swiss Machines | | Min D.O.C. | 0.3 mm |

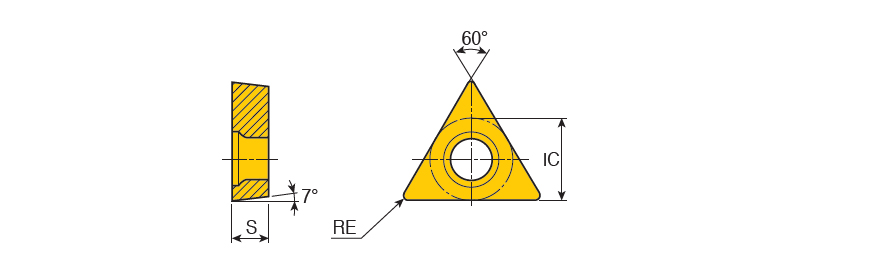

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2.5 mm |
| Cutting Edge Length (L) | 11 mm | Min. Turning Feed (ft(min)) | 0.06 mm/rev |
| Insert Thickness (S) | 2.38 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Product Features
| Family Description | Positive Triangular inserts for medium applications of wide variety of materials with 7° clearance angle & low cutting force | FamilyName | TCMT-PC |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0024
Name
Turning Indexable Inserts
FamilyName
TCMT-PC
BrandName
Taegutec
