VCGT 110302M SM-F TT4430
Positive 7° clearance & ground 35° rhombic inserts with sharp cutting edge for general purpose of small parts on swiss type automatic lathes
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT4430 |
| Application | | Ext 72.5° App 35° Diamond | Ext 93° App 35° Diamond | Inserts | Int 100° App 70° Diamond | Int 108° App 35° Diamond | Int 117.5 App 35° Diamond | Int 142° App 35° Diamond | Int 93° App 35° Diamond | Tools for Swiss Machines | | Min D.O.C. | 0.2 mm |

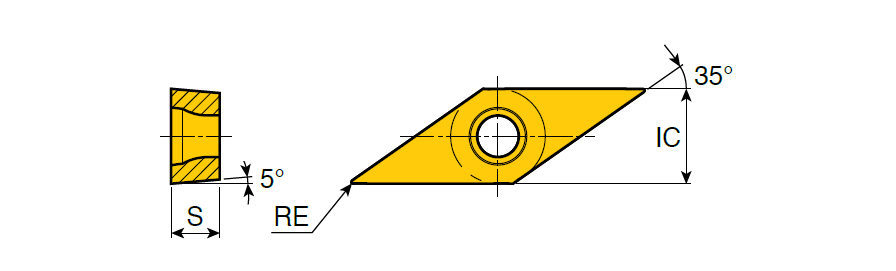

| Corner Radius (RE) | 0.2 mm | Depth of Cut Maximum (APMX) | 1.5 mm |
| Cutting Edge Length (L) | 11.1 mm | Min. Turning Feed (ft(min)) | 0.02 mm/rev |
| Insert Thickness (S) | 3.18 mm | Max. Turning Feed (ft(max)) | 0.12 mm/rev |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Multi AlTiCrN | Unit | M |
Product Features
| Family Description | Positive 7° clearance & ground 35° rhombic inserts with sharp cutting edge for general purpose of small parts on swiss type automatic lathes | FamilyName | VCGT-SM-F |
| Remarks | M: Corner radius minus tolerance (ex : 02M is 0.18) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0038
Name
Turning Indexable Inserts
FamilyName
VCGT-SM-F
BrandName
Taegutec
