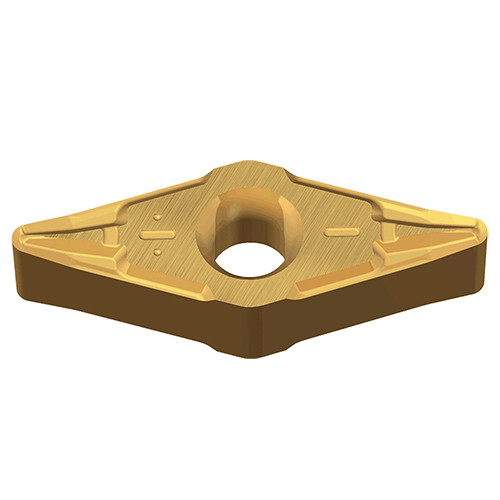

VNMX 130402 FS PV3010
Negative 35° Rhombic RHINOTURN inserts for super-finishing of steel
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | PV3010 |
| Application | | Ext 117.5° App 35° Diamond | Ext 72.5° App 35° Diamond | Ext 93° App 35° Diamond | Inserts | Int 100° App 70° Diamond | Int 117.5 App 35° Diamond | Int 95° App 35° Diamond | Tools for Swiss Machines | | Min D.O.C. | 0.2 mm |
| Corner Radius (RE) | 0.2 mm | Depth of Cut Maximum (APMX) | 1 mm |
| Cutting Edge Length (L) | 0 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Inscribed Circle Diameter (IC) | 7.94 mm | Measurement Type | Metric |
| Cutting Edge Material | Cermet | Body Material | Carbide |
| Coating | TiN | Unit | M |
Product Features
| Family Description | Negative 35° Rhombic RHINOTURN inserts for super-finishing of steel | FamilyName | VNMX-FS (RHINO) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0059
Name
Turning Indexable Inserts
FamilyName
VNMX-FS (RHINO)
BrandName
Taegutec
