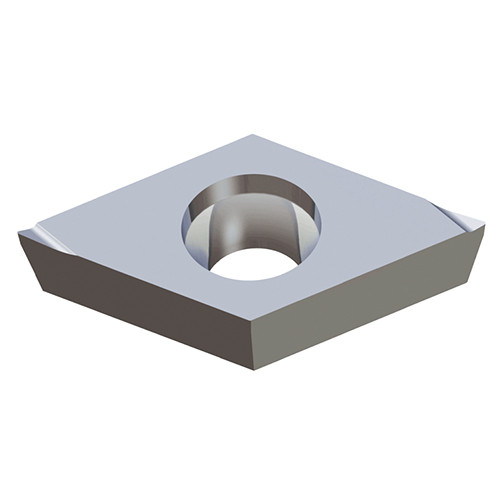

DPGT 11T3003 R-FF TT9020
Positive ground 55° Rhombic inserts with ground chip former for finish to medium machining of small components

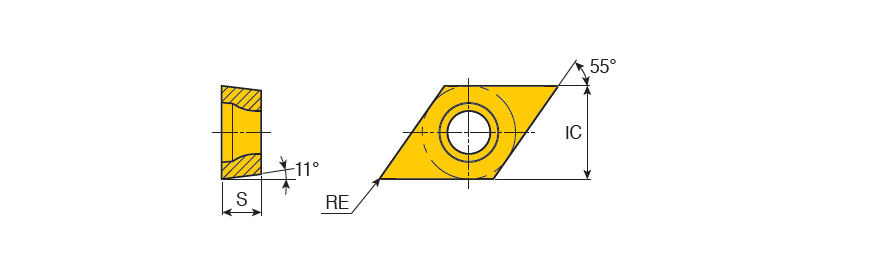

| Applicable Material | | Steel | Stainless Steel | | Grade | TT9020 |
| Application | | Ext 95° App 55° Diamond | Inserts | | Min D.O.C. | 0.05 mm |
| Corner Radius (RE) | 0.03 mm | Depth of Cut Maximum (APMX) | 0.4 mm |
| Cutting Edge Length (L) | 0 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Insert Thickness (S) | 3.97 mm | Max. Turning Feed (ft(max)) | 0.1 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN | Unit | M |
Product Features
| Family Description | Positive ground 55° Rhombic inserts with ground chip former for finish to medium machining of small components | FamilyName | DPGT R/L-FF |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0055
Name
Turning Indexable Inserts
FamilyName
DPGT R/L-FF
BrandName
Taegutec
