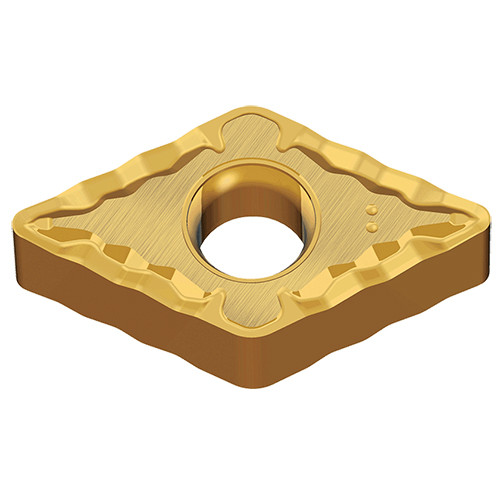

DNMG 130512 FT TT5100
Negative 55° Rhombic RHINOTURN inserts with serrated cutting edge for semi-finishing & medium machining of automotive steel components
| Applicable Material | | Steel | Stainless Steel | | Grade | TT5100 |
| Application | | Ext 107.5° App 55° Diamond | Ext 62.5° App 55° Diamond | Ext 93° App 55°Diamond | Ext 93° App Face 55° Diamond | Ext 93° App Sleeve 55° Diamond | Inserts | Int 100° App 70° Diamond | Int 107.5° App 55° Diamond | Int 93° App 55° Diamond | Int 93° App 70° Diamond | Int 93° App Back 55° Diamond | Tools for Swiss Machines | | Min D.O.C. | 0.35 mm |

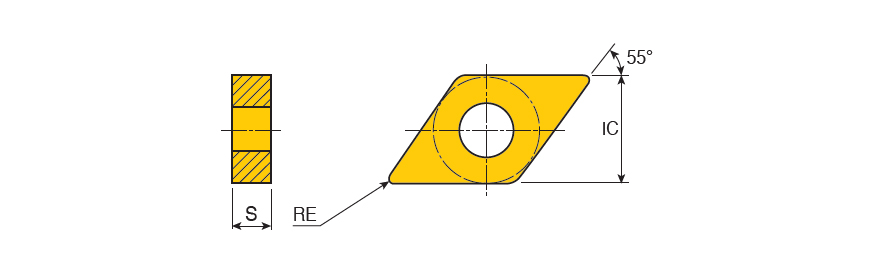

| Corner Radius (RE) | 1.2 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Cutting Edge Length (L) | 13 mm | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Insert Thickness (S) | 5.56 mm | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Inscribed Circle Diameter (IC) | 11.11 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Product Features
| Family Description | Negative 55° Rhombic RHINOTURN inserts with serrated cutting edge for semi-finishing & medium machining of automotive steel components | FamilyName | DNMG-FT (RHINO) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0111
Name
Turning Indexable Inserts
FamilyName
DNMG-FT (RHINO)
BrandName
Taegutec
