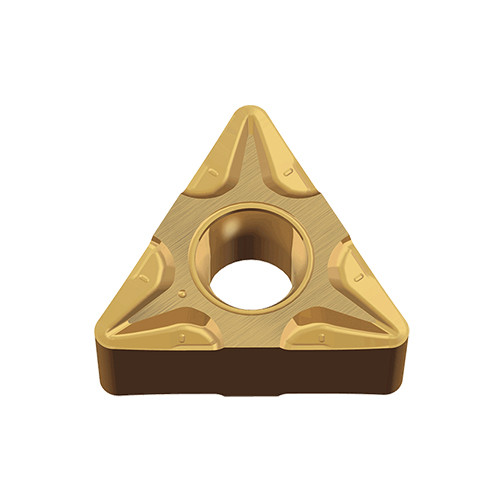

TNMG 130404 FM CT3000
Negative Triangular RHINOTURN inserts for semi-finishing to semi-medium machining of steels
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | CT3000 |
| Application | | Ext 105° App 60° Triangle | Ext 60° Neutral 60° Triangle | Ext 91° App 60° Triangle | Ext 91° App Face 60° Triangle | Ext 93° App 60° Triangle | Inserts | Int 91° App 60° Triangle | Int 93° App 60° Triangle | Tools for Swiss Machines | | Min D.O.C. | 0.25 mm |

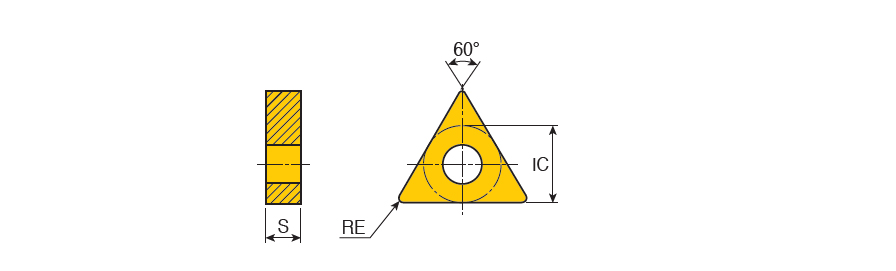

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 1.5 mm |
| Cutting Edge Length (L) | 13 mm | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 7.94 mm | Measurement Type | Metric |
| Cutting Edge Material | Cermet | Body Material | Carbide |
| Coating | Cermet | Unit | M |
Product Features
| Family Description | Negative Triangular RHINOTURN inserts for semi-finishing to semi-medium machining of steels | FamilyName | TNMG-FM (RHINO) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0036
Name
Turning Indexable Inserts
FamilyName
TNMG-FM (RHINO)
BrandName
Taegutec
