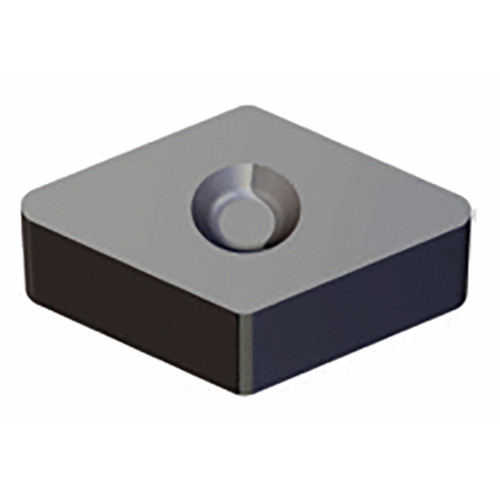

DNGX 150712 T7-CH AS500
Negative 55° Rhombic ground Ceramic Dimple inserts for cast iron roughing
| Applicable Material | | Cast Iron | | Grade | AS500 |
| Application | | Ext 62.5° App 55° Diamond | Ext 93° App 55°Diamond | Inserts | Int 100° App 70° Diamond | Int 107.5° App 55° Diamond | Int 95° App 55° Diamond | | Min D.O.C. | 0.1 mm |

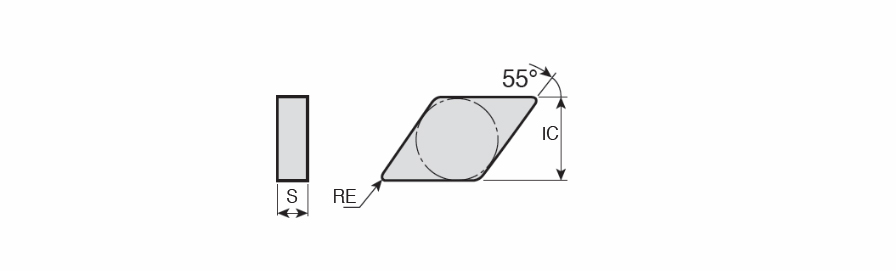

| Corner Radius (RE) | 1.2 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Cutting Edge Length (L) | 15.5 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 7.94 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Coating | SiAlON | Unit | M |
Product Features
| Family Description | Negative 55° Rhombic ground Ceramic Dimple inserts for cast iron roughing | FamilyName | DNGX-CERAMIC |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0061
Name
Turning Indexable Inserts
FamilyName
DNGX-CERAMIC
BrandName
Taegutec
