SNGA 120408 S7 AB2010

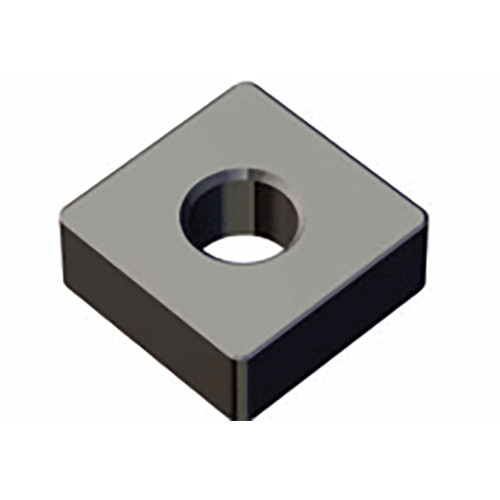

Negative Square ground Ceramic inserts with hole for cast iron and hardened steel machining
| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 5.16 mm |
| Application | | Ext 45° App 90° Square | Ext 45°App Face&Turn 90°Square | Ext 75° App 90° Square | Ext 75° App Face 90° Square | Inserts | Int 75° App 90° Square | | Min D.O.C. | 0.1 mm |

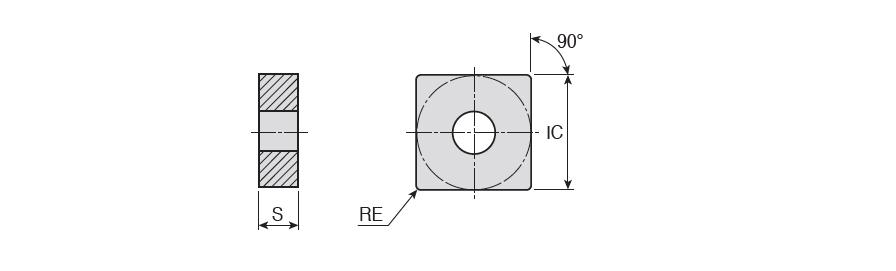

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Cutting Edge Length (L) | 12.7 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Coating | TiN | Unit | M |
| Grade | AB2010 |
Product Features
| Family Description | Negative Square ground Ceramic inserts with hole for cast iron and hardened steel machining | FamilyName | SNGA-CERAMIC |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0029
Name
Turning Indexable Inserts
FamilyName
SNGA-CERAMIC
BrandName
Taegutec
