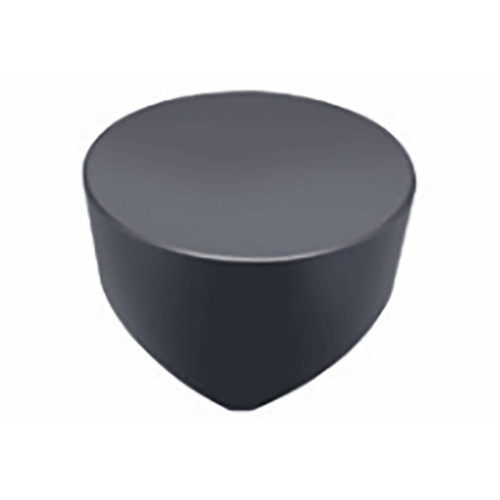

RCGX 060600 U1 AB30

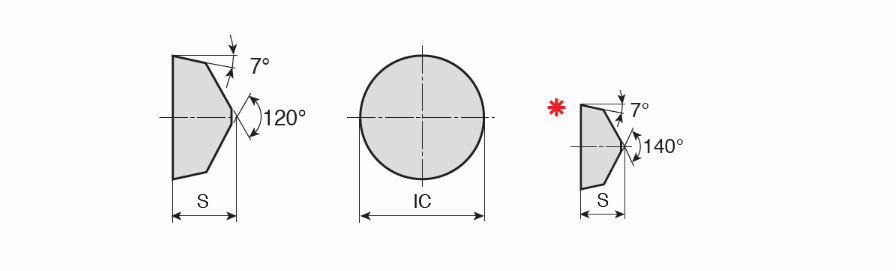

Positive Round ground Ceramic inserts with 7° clearance angle with V shape bottom for nickel based super alloys & hardened steels machining
| Applicable Material | | Cast Iron | Hard Materials | | Min D.O.C. | 0.1 mm |
| Application | | Ext Neutral Round | Ext Profile Round | Inserts | | Depth of Cut Maximum (APMX) | 2 mm |
| Insert Thickness (S) | 6.35 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Inscribed Circle Diameter (IC) | 6.35 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Cutting Edge Material | Ceramic | Measurement Type | Metric |
| Coating | TiCN+Al2O3 | Body Material | Carbide |
| Grade | AB30 | Unit | M |
Product Features
| Family Description | Positive Round ground Ceramic inserts with 7° clearance angle with V shape bottom for nickel based super alloys & hardened steels machining | FamilyName | RCGX-CERAMIC |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0020
Name
Turning Indexable Inserts
FamilyName
RCGX-CERAMIC
BrandName
Taegutec
