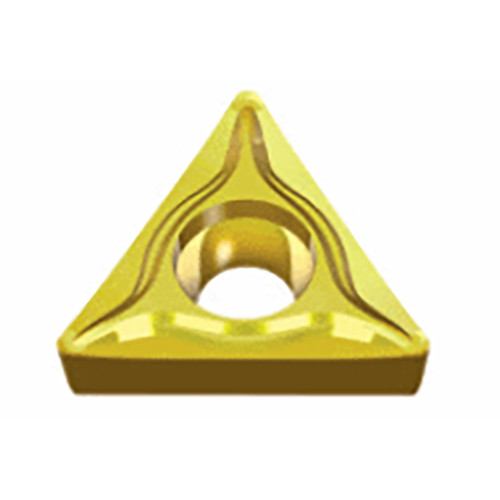

TCMT 16T308 FG TT5080
Positive Triangular inserts for finish to medium light applications of steels & stainless steels with 7° clearance angle & excellent chip control
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Grade | TT5080 |
| Application | | Ext 91° App 60° Triangle | Ext 91° App Face 60° Triangle | Ext 93° App 60° Triangle | Inserts | Int 91° App 60° Triangle | Tools for Swiss Machines | | Min D.O.C. | 0.6 mm |

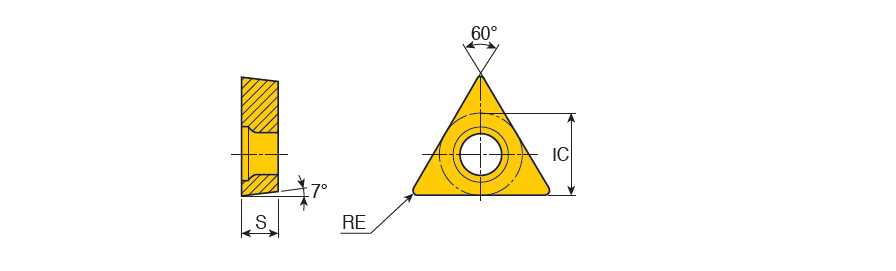

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 16.5 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 3.97 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
Product Features
| Family Description | Positive Triangular inserts for finish to medium light applications of steels & stainless steels with 7° clearance angle & excellent chip control | FamilyName | TCMT-FG |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0060
Name
Turning Indexable Inserts
FamilyName
TCMT-FG
BrandName
Taegutec
