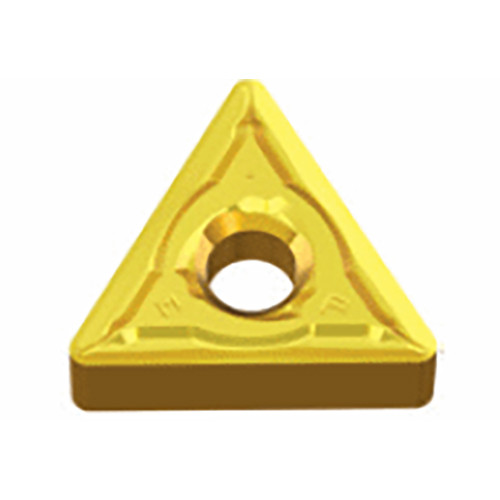

TNMG 220404 MP TT9225
Negative 60° Triangular inserts for medium machining of steels & stainless steels
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9225 |
| Application | | Ext 60° App 60° Triangle | Ext 60° Neutral 60° Triangle | Ext 91° App 60° Triangle | Ext 91° App Face 60° Triangle | Ext 93° App 60° Triangle | Inserts | Int 91° App 60° Triangle | | Min D.O.C. | 1 mm |

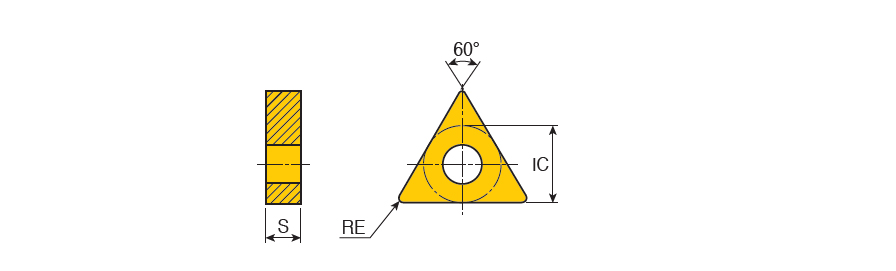

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 3.5 mm |
| Cutting Edge Length (L) | 22 mm | Min. Turning Feed (ft(min)) | 0.12 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.35 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al203+TiCN | Unit | M |
Product Features
| Family Description | Negative 60° Triangular inserts for medium machining of steels & stainless steels | FamilyName | TNMG-MP |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0154
Name
Turning Indexable Inserts
FamilyName
TNMG-MP
BrandName
Taegutec
