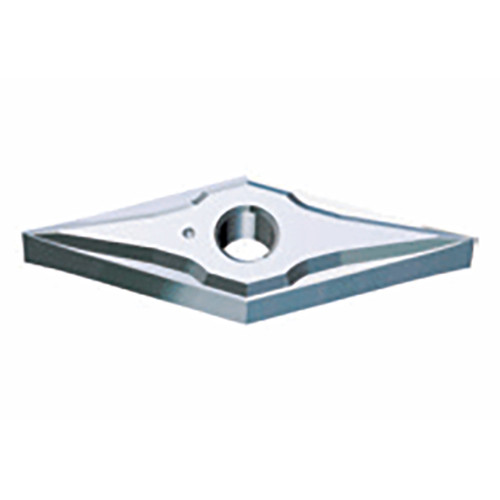

VNGG 160404 ML TT5100
Negative ground 35° Rhombic inserts for machining of aluminum & exotic materials
| Applicable Material | | Steel | Stainless Steel | | Grade | TT5100 |
| Application | | Ext 117.5° App 35° Diamond | Ext 72.5° App 35° Diamond | Ext 93° App 35° Diamond | Inserts | Int 100° App 70° Diamond | Int 117.5 App 35° Diamond | Int 95° App 35° Diamond | | Min D.O.C. | 0.8 mm |

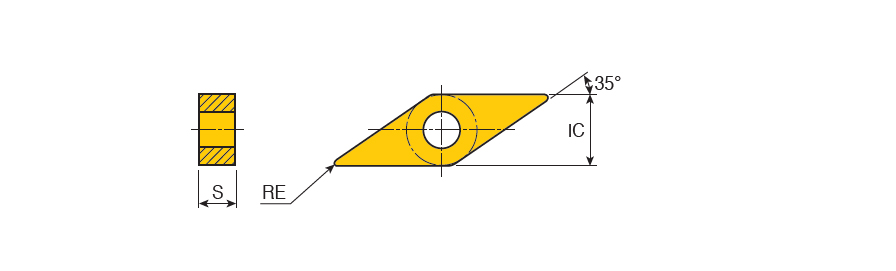

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Cutting Edge Length (L) | 16.6 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.27 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Product Features
| Family Description | Negative ground 35° Rhombic inserts for machining of aluminum & exotic materials | FamilyName | VNGG-ML |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0095
Name
Turning Indexable Inserts
FamilyName
VNGG-ML
BrandName
Taegutec
