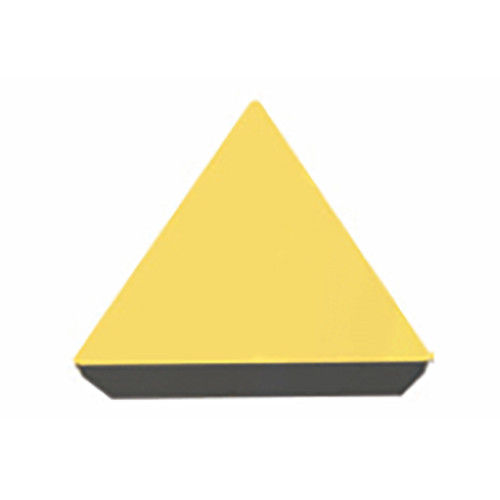

TPGN 220430 P30
Positive triangular inserts without chip former for finish
| Applicable Material | | Steel | | Grade | P30 |
| Application | | Ext 90° App Face 60° Triangle | Ext 91° App 60° Triangle | Ext 91° App Face 60° Triangle | Inserts | Int 91° App 60° Triangle | | Min D.O.C. | 1.5 mm |

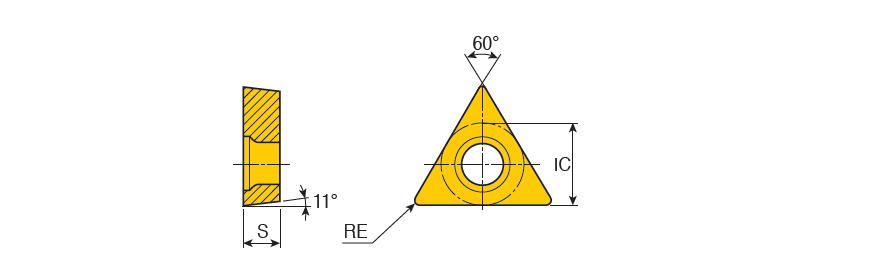

| Corner Radius (RE) | 3 mm | Depth of Cut Maximum (APMX) | 7 mm |
| Cutting Edge Length (L) | 22 mm | Min. Turning Feed (ft(min)) | 0.3 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.45 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
Product Features
| Family Description | Positive triangular inserts without chip former for finish | FamilyName | TPGN |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0123
Name
Turning Indexable Inserts
FamilyName
TPGN
BrandName
Taegutec
