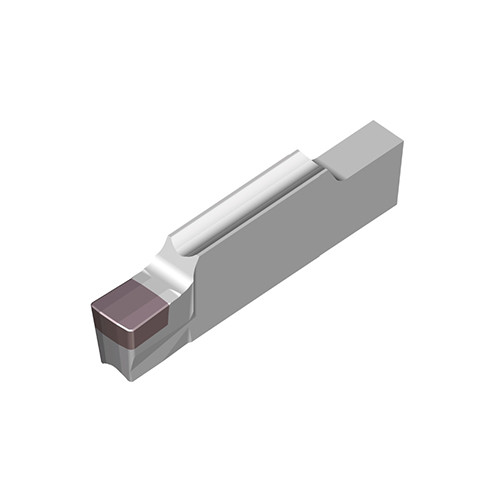

TSG 3.0-0.3-HF TB2015
T-CLAMP CBN inserts for High Feed turning of hardened steels

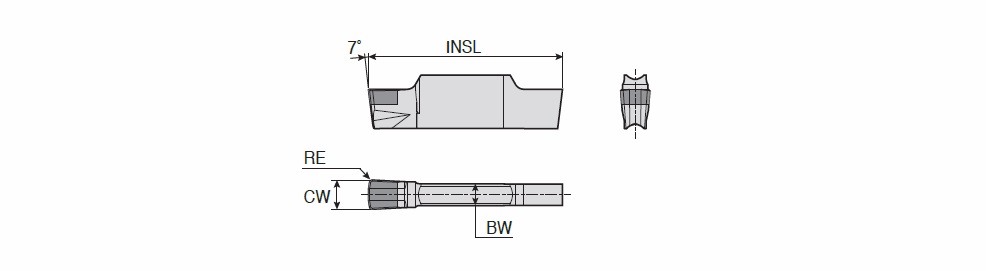

| Cutting Width (CW) | 3 mm | Applicable Material | | Hard Materials | |
| Corner Radius (RE) | 0.3 mm | Overall Length (OAL) | 20 mm |
| Coating | Uncoated | Measurement Type | Metric |
| Grade | TB2015 | Body Material | Carbide |
| Cutting Edge Material | PCBN | Unit | M |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Inserts | |
Product Features
| Family Description | T-CLAMP CBN inserts for High Feed turning of hardened steels | FamilyName | TSG-HF (H-FEED) |
| Remarks | For parting and grooving range, click on "More Info". | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0160
Name
Groove/Turn Indexable Inserts
FamilyName
TSG-HF (H-FEED)
BrandName
Taegutec
