TDIT 5.00E-0.40 TT5100

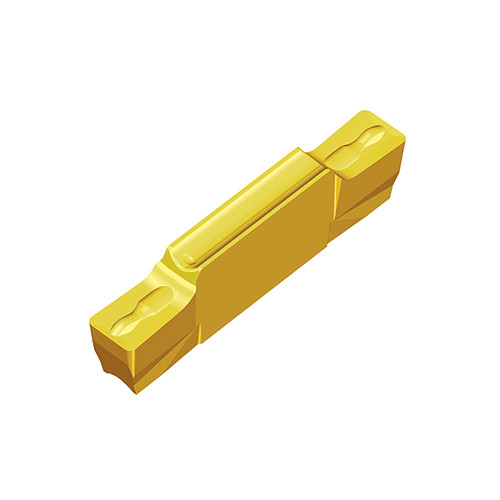

Precision double-ended inserts for internal turning and grooving

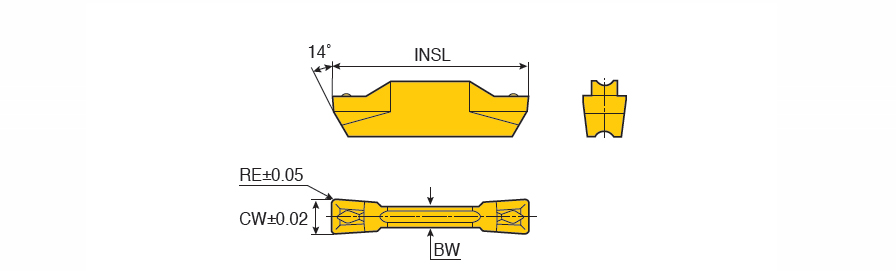

| Cutting Width (CW) | 5 mm | Application | | Inserts | Int. Groove & Turn | Int. Grooving | |
| Corner Radius (RE) | 0.4 mm | Applicable Material | | Steel | Stainless Steel | |
| Thread Pitch Maximum (TPX) | 5.2 mm | Insert Seat Size Code (SSC) | 5 |
| Insert Length (INSL) | 25 mm | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | TT5100 | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Precision double-ended inserts for internal turning and grooving | FamilyName | TDIT-E. |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0092
Name
Groove/Turn Indexable Inserts
FamilyName
TDIT-E.
BrandName
Taegutec
