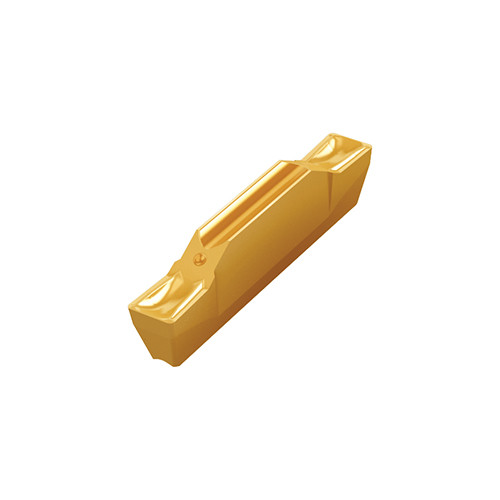

TDCT 2E-0.3 TT9080

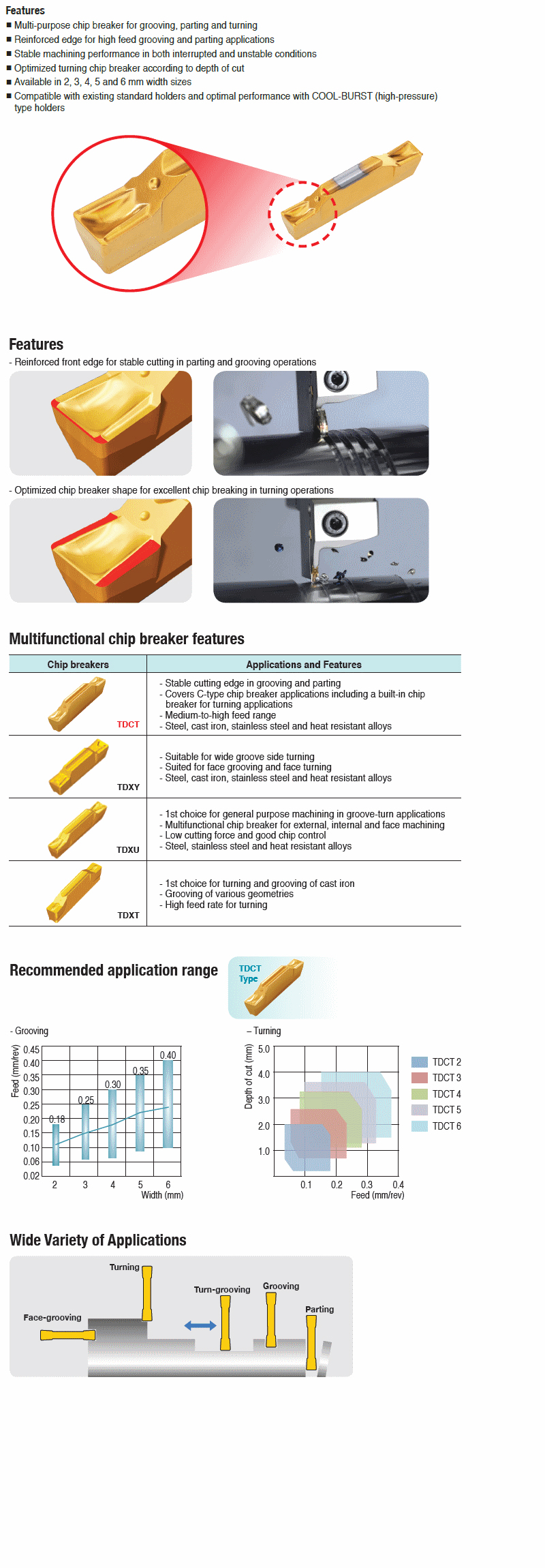

Double-ended pressed type multi functional inserts for general use in parting, grooving and turning machining

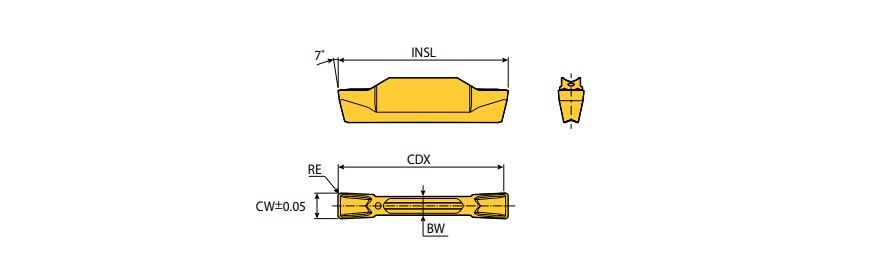

| Cutting Width (CW) | 2 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Inserts | Int. Face Grooving | Int. Face Grooving & Turning | Int. Groove & Turn | Int. Grooving | Parting | |
| Corner Radius (RE) | 0.3 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 19 mm | Overall Length (OAL) | 20 mm |
| Coating | TiAlN+TiN | Measurement Type | Metric |
| Grade | TT9080 | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | Double-ended pressed type multi functional inserts for general use in parting, grooving and turning machining | FamilyName | TDCT |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0033
Name
Groove/Turn Indexable Inserts
FamilyName
TDCT
BrandName
Taegutec
