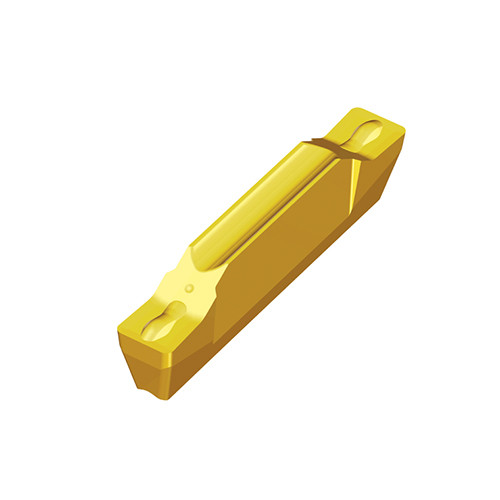

TDXT 8E-0.8 TT9080
Pressed double-ended inserts for External, Internal, Face machining with Grooving and Turning

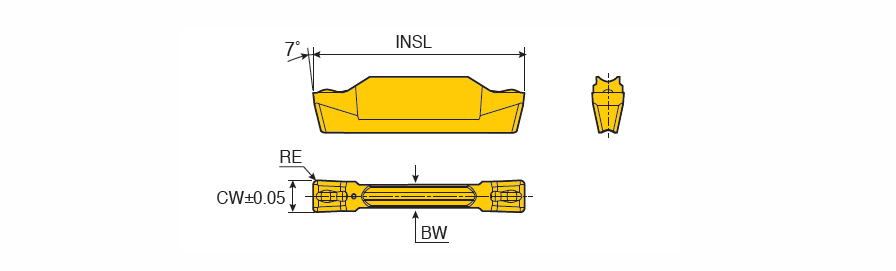

| Cutting Width (CW) | 8 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Inserts | Int. Face Grooving | Int. Face Grooving & Turning | Int. Groove & Turn | Int. Grooving | Parting | |
| Corner Radius (RE) | 0.8 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Thread Pitch Maximum (TPX) | 6.4 mm | Insert Seat Size Code (SSC) | 8 |
| Insert Length (INSL) | 30 mm | Measurement Type | Metric |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | TT9080 | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Pressed double-ended inserts for External, Internal, Face machining with Grooving and Turning | FamilyName | TDXT-E |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0189
Name
Groove/Turn Indexable Inserts
FamilyName
TDXT-E
BrandName
Taegutec
