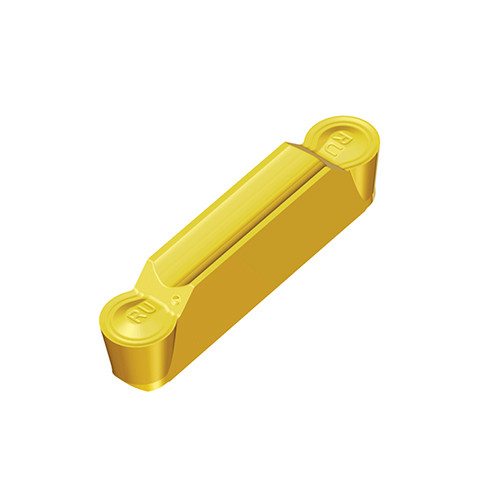

TDT 6E-3.0-RU TT7505
Double-ended pressed inserts for profiling, turning & grooving with stable cutting edge & good chip control when machining steel & cast iron

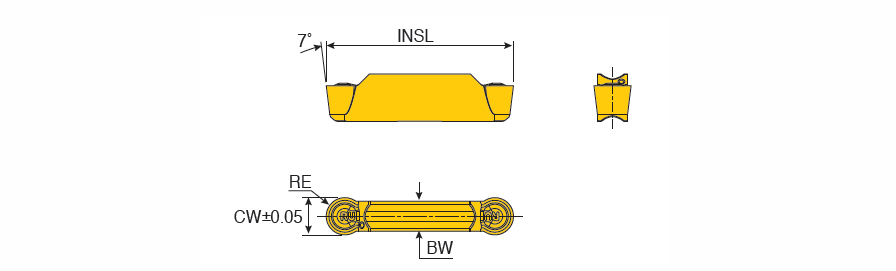

| Cutting Width (CW) | 6 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Ext. Undercut | Inserts | Int. Profiling | Int. Undercut & Turning | |
| Corner Radius (RE) | 3 mm | Applicable Material | | Cast Iron | |
| Thread Pitch Maximum (TPX) | 5.2 mm | Insert Seat Size Code (SSC) | 6 |
| Insert Length (INSL) | 25 mm | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | TT7505 | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Double-ended pressed inserts for profiling, turning & grooving with stable cutting edge & good chip control when machining steel & cast iron | FamilyName | TDT-RU (Full radius-Pressed) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0109
Name
Groove/Turn Indexable Inserts
FamilyName
TDT-RU (Full radius-Pressed)
BrandName
Taegutec
