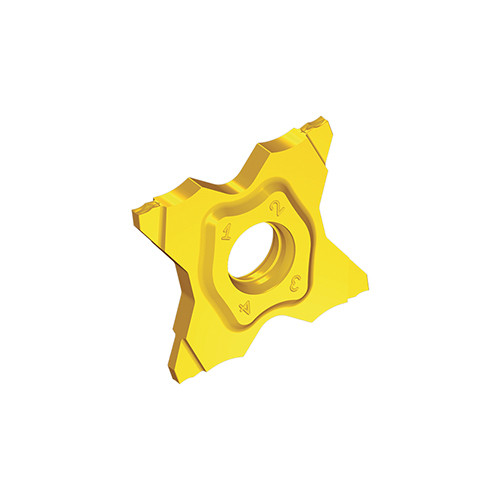

TQJ 27-2.15-0.08-CG TT9080
Inserts with 4 cutting edge for DIN 471 circlip Grooving & Shallow grooves

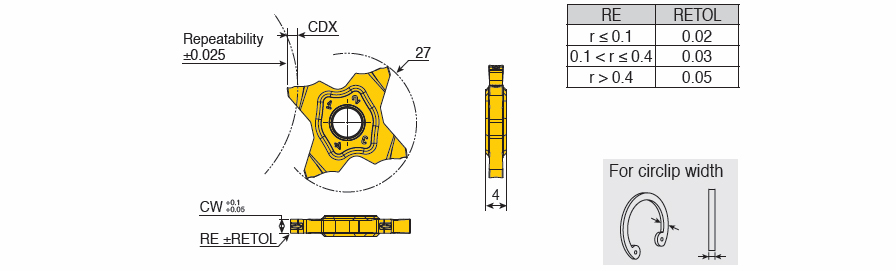

| Cutting Width (CW) | 2.15 mm | Application | | Ext. Grooving | Inserts | |
| Corner Radius (RE) | 0.08 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 2.5 mm | Measurement Type | Metric |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | TT9080 | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Inserts with 4 cutting edge for DIN 471 circlip Grooving & Shallow grooves | FamilyName | TQJ 27-CG |
| Remarks | For parting and grooving range, click on "More Info". | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0158
Name
Groove/Turn Indexable Inserts
FamilyName
TQJ 27-CG
BrandName
Taegutec
