PS BT40 45 M16 MAZAK B

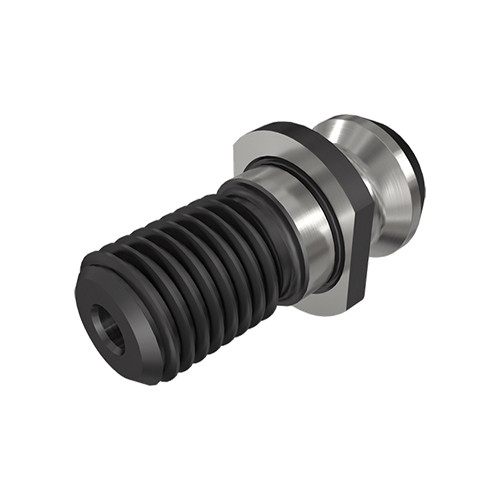

BT Pull stud with ANSI retention knob for MAZAK machines

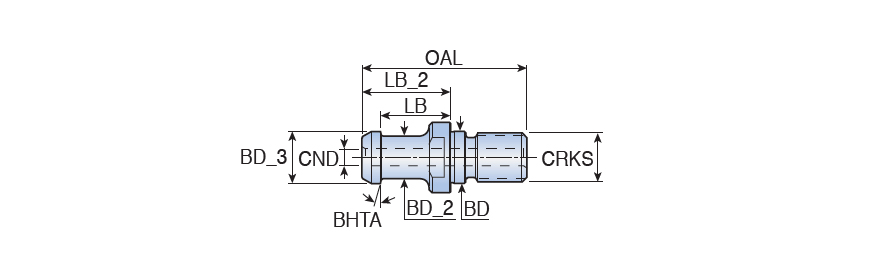

| Shank Size (SS) | 40 mm | Measurement Type | Metric |
| Body Diameter (BD) | 17 mm | Body Half Taper Angle (BHTA) | 45 Degrees |
| Connection Retention Knob Thread Size (CRKS) | M16 | Cutter Outer Diameter (D1) | 18.79 mm |
| Overall Length (OAL) | 44.1 mm | Reduced Diameter (D2) | 12.45 mm |
| Body Length_2 (LB_2) | 19.1 mm | Body Material | Steel |
| Application | | Collets & Accessories | | Unit | M |
Product Features
| Family Description | BT Pull stud with ANSI retention knob for MAZAK machines | FamilyName | PS BT-MAZAK (PULL STUD) |
| Remarks | Coolant holes only in items with a "B" suffix | BrandName | Taegutec |
| COO | ITALY |
Shipping Info
Weight per item
0.0500
Name
Pull Studs (Retention Knobs)
FamilyName
PS BT-MAZAK (PULL STUD)
BrandName
Taegutec
