‎TB-B20.000-S-25T0-3B

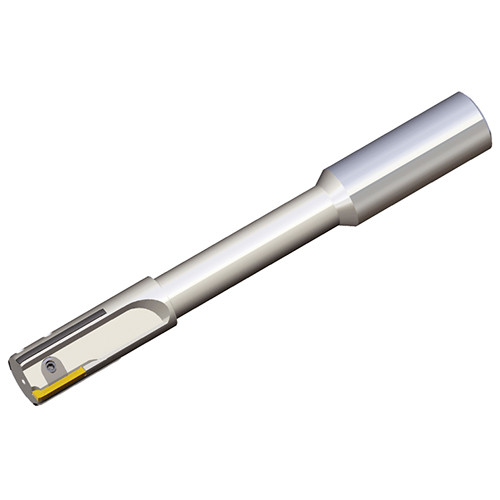

Single-edged indexable reamers for blind holes

Item # TTK4209048

Brand: Taegutec

Mfr#: 4209048

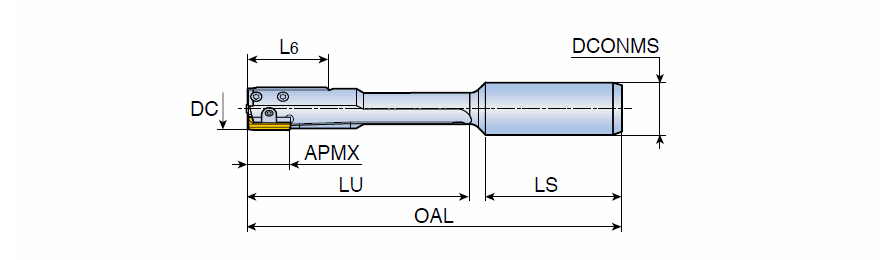

Connection Diameter Machine Side (DCONMS)

25 mm

Shank Length (LS)

56 mm

Application

| Blind Hole |

Body Material

Steel

Insert Seat Size Code (SSC)

3.00 mm

Measurement Type

Metric

Depth of Cut Maximum (APMX)

17 mm

Unit

Overall Length (OAL)

171 mm

Product Features

Family Description

Single-edged indexable reamers for blind holes

COO

ITALY

Weight per item

0.3370
