HCEM 5100 TT5525

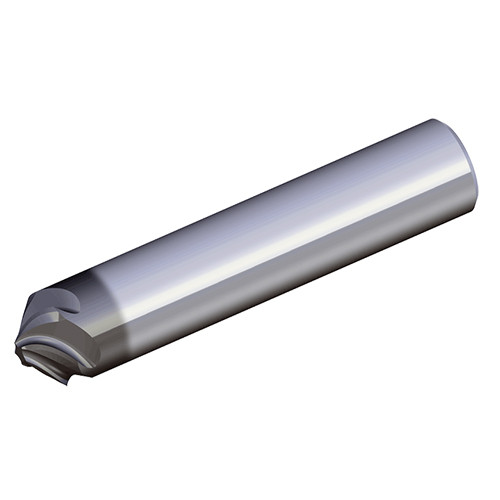

45° Chamfering solid carbide end mills with 5 flutes and 40° high helix angle for high productivity & low cutting force

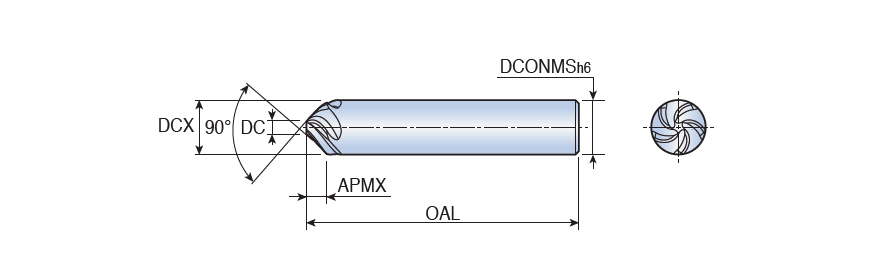

| Cutting Diameter (DC) | 2.5 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 10 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 3.8 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 72 mm | Application | | Chamfer & Serration | Countersinking | Solid Carbide End Mills | |
| Cutting Edge Material | Carbide | Grade | TT5525 |
| Coating | AlTiCrN | Body Material | Carbide |
| Flute Count (NOF) | 5 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 40 Degrees | Unit | M |
Product Features
| Family Description | 45° Chamfering solid carbide end mills with 5 flutes and 40° high helix angle for high productivity & low cutting force | FamilyName | HCEM 5 (5 flutes) |

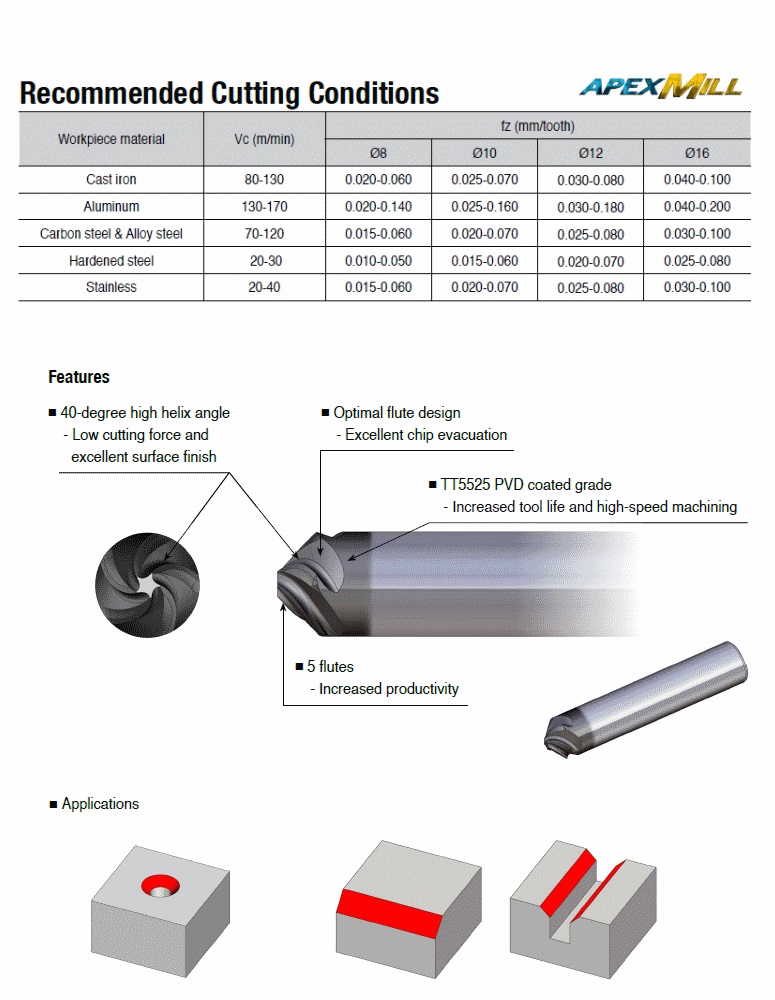

| Remarks | For recommended cutting conditions click on More info. | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0865
Name
Square & Corner Radius End Mills
FamilyName
HCEM 5 (5 flutes)
BrandName
Taegutec
