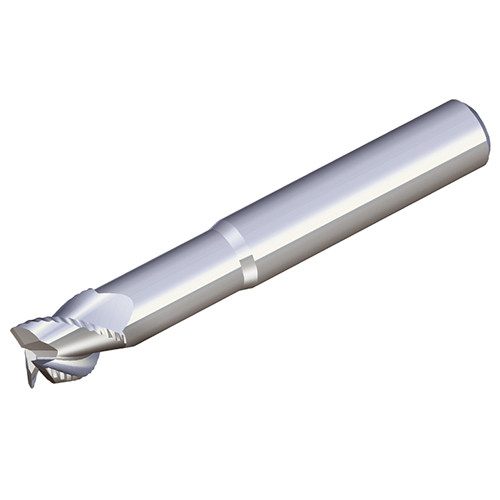

REMA 3100 UF10
Solid carbide end mills with shredded cutting edges for aluminum roughing with 3 flute & small corner R

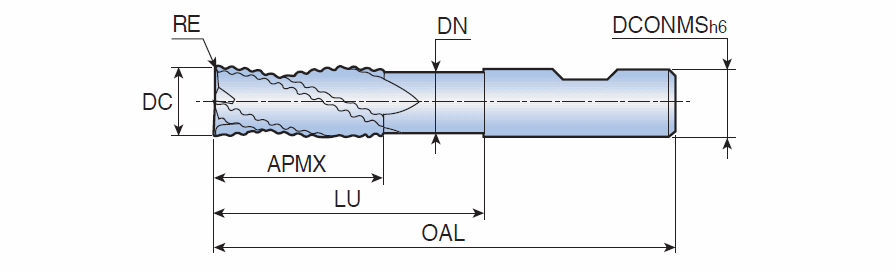

| Cutting Diameter (DC) | 10 mm | Usable Length (LU) | 31 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Applicable Material | | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 12 mm | Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Overall Length (OAL) | 72 mm | Corner Radius (RE) | 0.2 mm |
| Cutting Edge Material | Carbide | Grade | UF10 |
| Coating | Uncoated | Neck Diameter (DN) | 9 |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Metric |
| Shank Type | Weldon | Unit | M |
| End Shape | Corner Radius |
Product Features
| Family Description | Solid carbide end mills with shredded cutting edges for aluminum roughing with 3 flute & small corner R | FamilyName | REMA 3..(C) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0800
Name
Square & Corner Radius End Mills
FamilyName
REMA 3..(C)
BrandName
Taegutec
