CRH 4100 TC3030

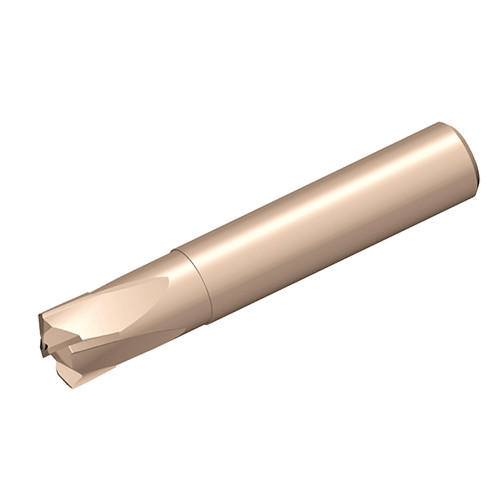

4 Flute High Feed Ceramic end mills for high speed machining of superalloys

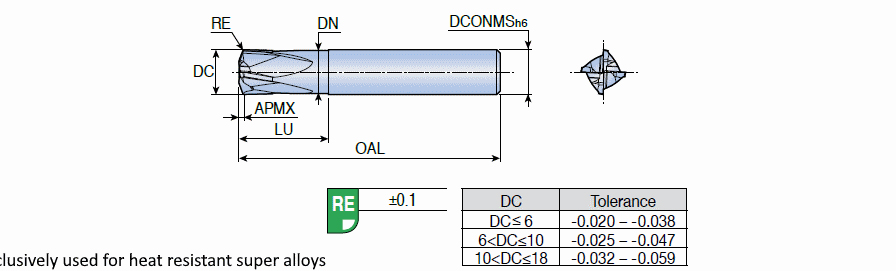

| Cutting Diameter (DC) | 10 mm | Usable Length (LU) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Applicable Material | | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 0.85 mm | Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Overall Length (OAL) | 63 mm | Corner Radius (RE) | 1 mm |
| Cutting Edge Material | Ceramic | Grade | TC3030 |
| Flute Count (NOF) | 4 | Neck Diameter (DN) | 9.6 |
| Flute Helix Angle (FHA) | 10 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius | Unit | M |
Product Features
| Family Description | 4 Flute High Feed Ceramic end mills for high speed machining of superalloys | FamilyName | CRH 4 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0230
Name
Square & Corner Radius End Mills
FamilyName
CRH 4
BrandName
Taegutec
