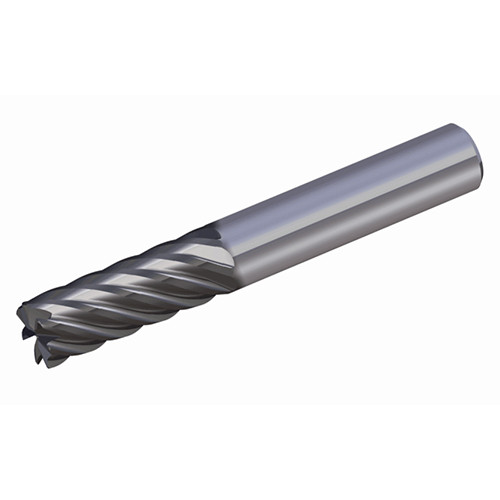

SED 7080 TT5515

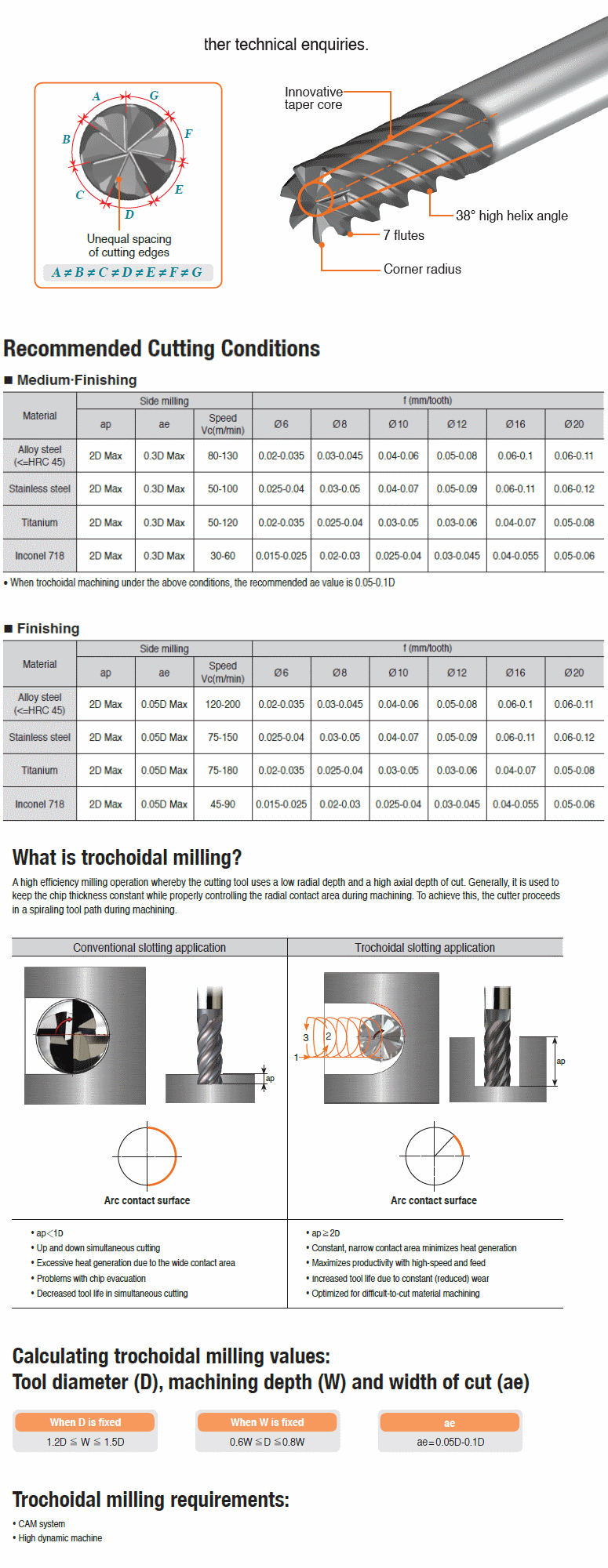

7 Flute solid carbide end mills with unequal spaced cutting edges for semi-finishing and finishing of difficult-to-cut materials in trochoidal high productivity machining
| Cutting Diameter (DC) | 8 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 25 mm | Application | | Helical Interpolation | Rampdown | Shouldering | Solid Carbide End Mills | Trochoidal Milling | |
| Overall Length (OAL) | 70 mm | Corner Radius (RE) | 0.5 mm |
| Cutting Edge Material | Carbide | Grade | TT5515 |
| Coating | AlTiCrN | Body Material | Carbide |
| Flute Count (NOF) | 7 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 38 Degrees | Unit | M |
| Shank Type | Round |
Product Features
| Family Description | 7 Flute solid carbide end mills with unequal spaced cutting edges for semi-finishing and finishing of difficult-to-cut materials in trochoidal high productivity machining | FamilyName | SED 7 |
| Remarks | 4D: 4xD depth of cut | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0495
Name
Square & Corner Radius End Mills
FamilyName
SED 7
BrandName
Taegutec
