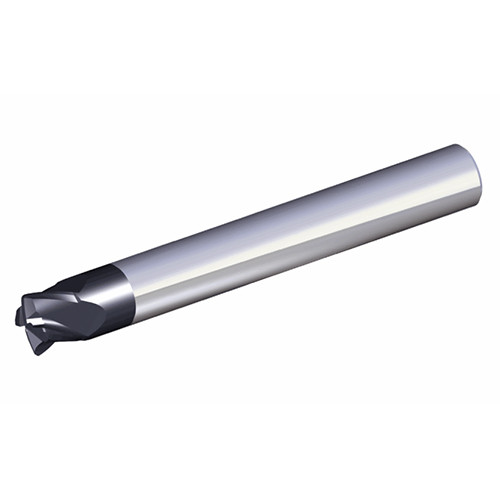

SCSL 6100R020X07 TT5515
Solid carbide lens shape endmills with 4, 6 flute for 5-axis profiling & semi-finishing & finishing applications
| Cutting Diameter (DC) | 10 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Usable Length (LU) | 7 mm |
| Depth of Cut Maximum (APMX) | 1.4 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 72 mm | Application | | Profiling | Solid Carbide End Mills | |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 1 mm |
| Coating | AlTiCrN | Grade | TT5515 |
| Flute Count (NOF) | 6 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 0 Degrees | Measurement Type | Metric |
| Shank Type | Round | Unit | M |
Product Features
| Family Description | Solid carbide lens shape endmills with 4, 6 flute for 5-axis profiling & semi-finishing & finishing applications | FamilyName | SCSL |
| Remarks | BSR : Wiper edge radius | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
Square & Corner Radius End Mills
FamilyName
SCSL
BrandName
Taegutec
