RDCF 6080 TTD610
Solid carbide end mills with 10° low helix angle of 4-8 flutes for finishing of composite materials by eliminating delamination and splintering

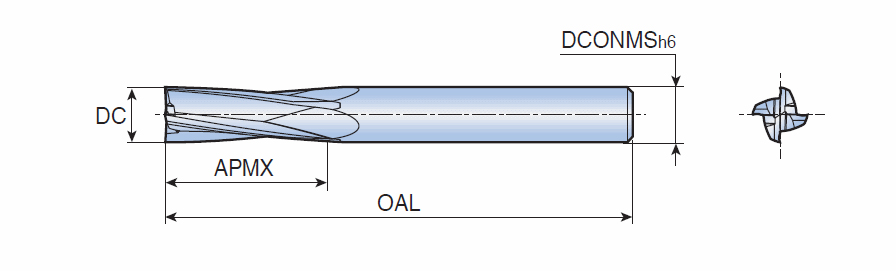

| Cutting Diameter (DC) | 8 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 8 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 24 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 75 mm | Application | | Edging | Shouldering | Solid Carbide End Mills | |
| Cutting Edge Material | Carbide | Grade | TTD610 |
| Coating | Diamond | Body Material | Carbide |
| Flute Count (NOF) | 6 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 10 Degrees | Unit | M |
Product Features
| Family Description | Solid carbide end mills with 10° low helix angle of 4-8 flutes for finishing of composite materials by eliminating delamination and splintering | FamilyName | RDCF |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0535
Name
Square & Corner Radius End Mills
FamilyName
RDCF
BrandName
Taegutec
