REH 4060L TT5525

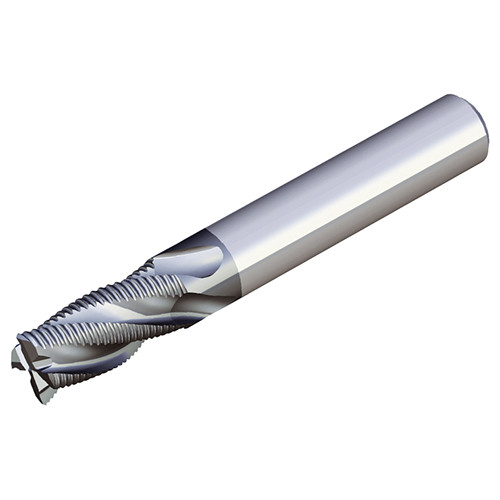

Solid carbide roughing end mills with serrated cutting edges & long length type & corner chamfer & 4-6 flute for low hardness parts

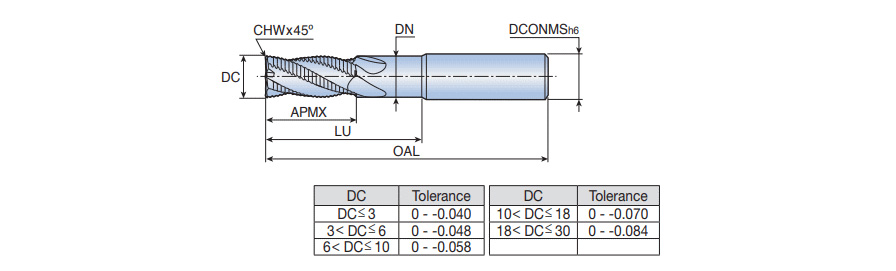

| Cutting Diameter (DC) | 6 mm | Usable Length (LU) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 16 mm | Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Overall Length (OAL) | 57 mm | Corner Chamfer Width (CHW) | 0.25 mm |
| Cutting Edge Material | Carbide | Grade | TT5525 |
| Coating | AlTiCrN | Neck Diameter (DN) | 5.5 |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Metric |
| Shank Type | Round | Unit | M |
| End Shape | Chamfer |
Product Features
| Family Description | Solid carbide roughing end mills with serrated cutting edges & long length type & corner chamfer & 4-6 flute for low hardness parts | FamilyName | REH ...L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0300
Name
Square & Corner Radius End Mills
FamilyName
REH ...L
BrandName
Taegutec
