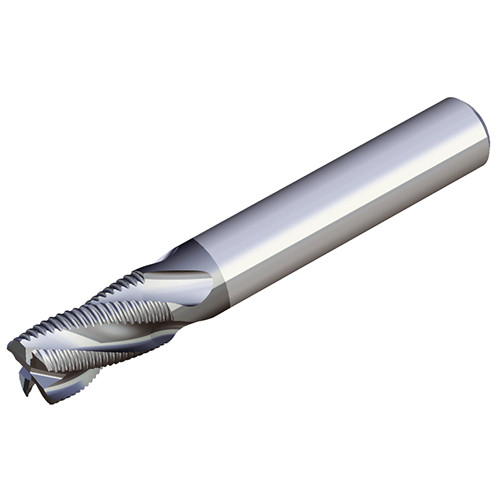

REH 5140M-14 TT5525
Solid carbide roughing end mills with serrated cutting edges & medium length type & 3-6 flute & corner chamfer for low hardness part

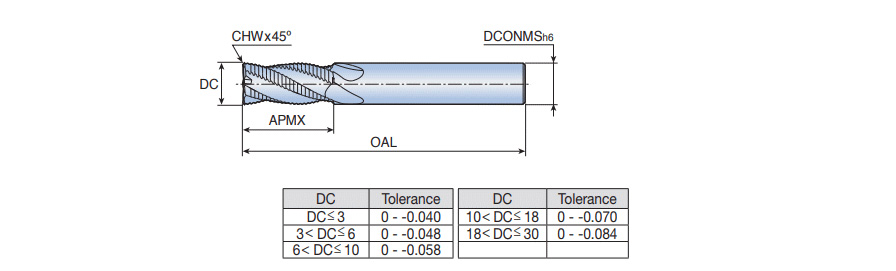

| Cutting Diameter (DC) | 14 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 26 mm | Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Overall Length (OAL) | 83 mm | Corner Chamfer Width (CHW) | 0.36 mm |
| Cutting Edge Material | Carbide | Grade | TT5525 |
| Coating | AlTiCrN | Body Material | Carbide |
| Flute Count (NOF) | 5 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 45 Degrees | Unit | M |
| Shank Type | Round |
Product Features
| Family Description | Solid carbide roughing end mills with serrated cutting edges & medium length type & 3-6 flute & corner chamfer for low hardness part | FamilyName | REH ...M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.1700
Name
Square & Corner Radius End Mills
FamilyName
REH ...M
BrandName
Taegutec
