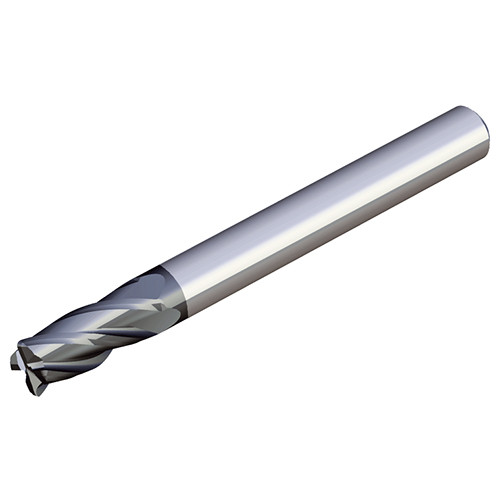

HES 4100LT-R1.0 TT5515
Solid carbide end mills of corner R type with long & 4 flute for general purpose

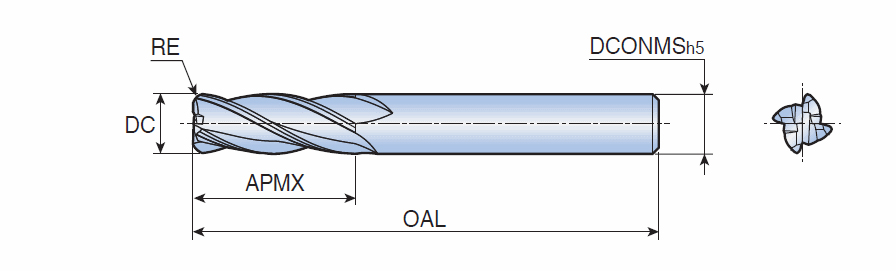

| Cutting Diameter (DC) | 10 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 25 mm | Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Overall Length (OAL) | 100 mm | Corner Radius (RE) | 1 mm |
| Cutting Edge Material | Carbide | Grade | TT5515 |
| Coating | AlTiCrN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Unit | M |
| Shank Type | Round |
Product Features
| Family Description | Solid carbide end mills of corner R type with long & 4 flute for general purpose | FamilyName | HES 4...LT-R |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.1120
Name
Square & Corner Radius End Mills
FamilyName
HES 4...LT-R
BrandName
Taegutec
