TSE 4140M(35X85) UF10

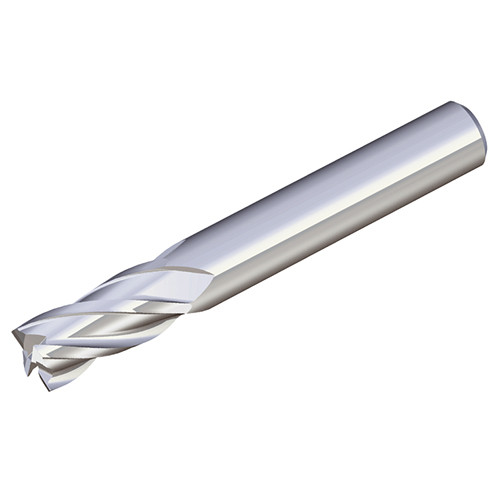

Solid carbide end mills with flat type & medium & 4 flute for general purpose of pre-hardened steels, tool steels, alloy steels and carbon steels

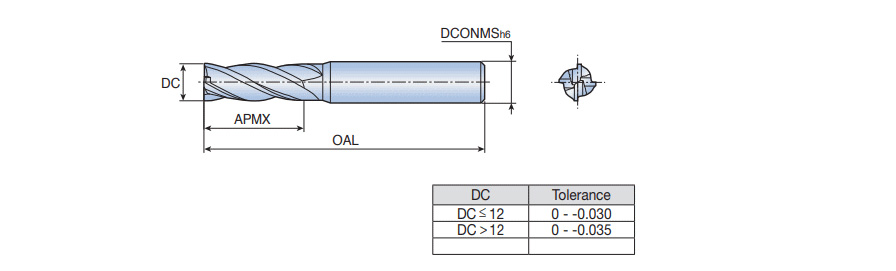

| Cutting Diameter (DC) | 14 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 16 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 35 mm | Applicable Material | | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 85 mm | Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Cutting Edge Material | Carbide | Grade | UF10 |
| Coating | Uncoated | Body Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Unit | M |
Product Features
| Family Description | Solid carbide end mills with flat type & medium & 4 flute for general purpose of pre-hardened steels, tool steels, alloy steels and carbon steels | FamilyName | TSE 4...M-UNCOATED |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.2015
Name
Square & Corner Radius End Mills
FamilyName
TSE 4...M-UNCOATED
BrandName
Taegutec
