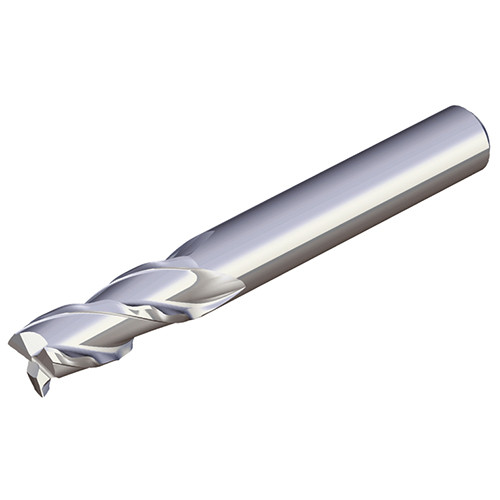

AWE 3120ML UF10
Solid carbide end mills for aluminum machining with long waved cutting edges, unequal space of cutting edges & variable helix angles without vibration
| Cutting Diameter (DC) | 12 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 12 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 30 mm | Applicable Material | | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 95 mm | Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Cutting Edge Material | Carbide | Grade | UF10 |
| Coating | Uncoated | Body Material | Carbide |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 50 Degrees | Unit | M |
Product Features
| Family Description | Solid carbide end mills for aluminum machining with long waved cutting edges, unequal space of cutting edges & variable helix angles without vibration | FamilyName | AWE 3..ML |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.1390
Name
Square & Corner Radius End Mills
FamilyName
AWE 3..ML
BrandName
Taegutec
