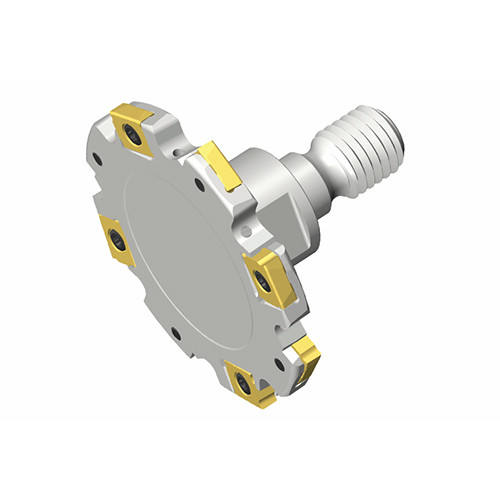

TSM D40-04-M08-SL23
Slotting and grooving cutters with SLOT slotting inserts & T-FLEXTEC modular adaptation

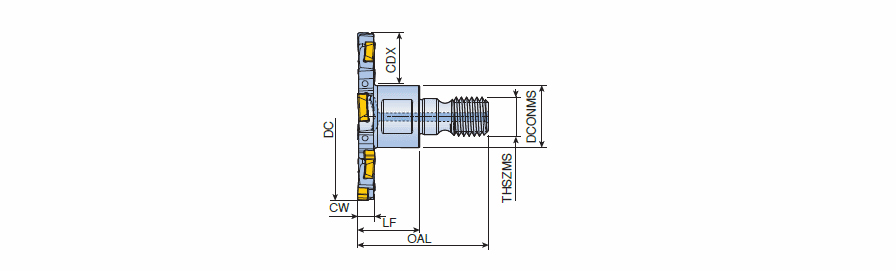

| Cutting Diameter (DC) | 40 mm | Overall Length (OAL) | 35.5 mm |
| Cutting Width (CW) | 4 mm | Usable Length (LU) | 18 mm |
| Cutting Depth Maximum (CDX) | 13 mm | Application | | Bottom Shouldering | Internal Groove Milling | Side Slotting | T Slotting | |
| Flute Count (NOF) | 6 | Measurement Type | Metric |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 Tooth | Body Material | Steel |
| Connection Thread Nominal Size Machine Side (THSZMS) | M08 | Unit | M |
Product Features
| Family Description | Slotting and grooving cutters with SLOT slotting inserts & T-FLEXTEC modular adaptation | FamilyName | TSM-M-SL |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.1100
Name
Disc w/Shank Indexable Slotting Cutters
FamilyName
TSM-M-SL
BrandName
Taegutec
