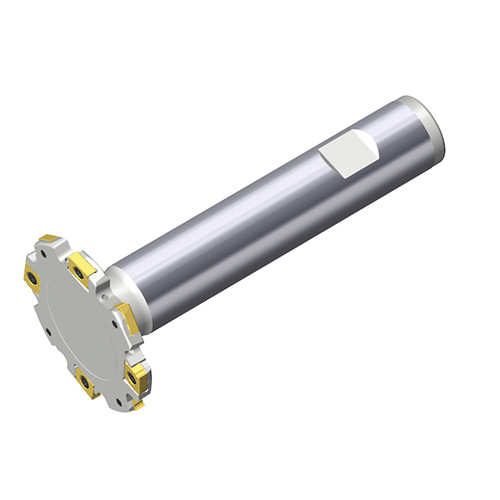

TSM D50-06-W20-SL33
Slotting and grooving end mills with SLOT slotting inserts

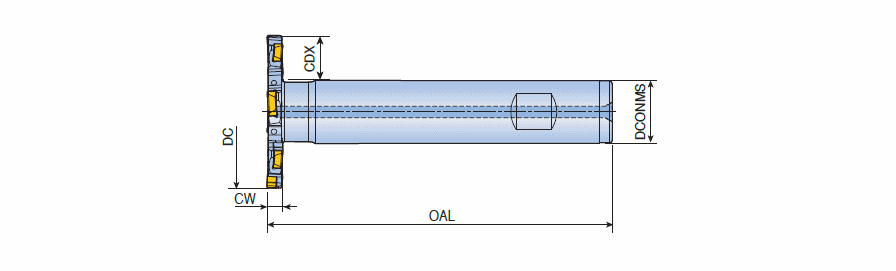

| Cutting Diameter (DC) | 50 mm | Overall Length (OAL) | 110 mm |
| Cutting Width (CW) | 6 mm | Application | | Bottom Shouldering | Internal Groove Milling | Side Slotting | T Slotting | |
| Cutting Depth Maximum (CDX) | 15 mm | Measurement Type | Metric |
| Flute Count (NOF) | 8 | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 Tooth | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
Product Features
| Family Description | Slotting and grooving end mills with SLOT slotting inserts | FamilyName | TSM-W-SL |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.3750
Name
Disc w/Shank Indexable Slotting Cutters
FamilyName
TSM-W-SL
BrandName
Taegutec
