SIR 0007 K08

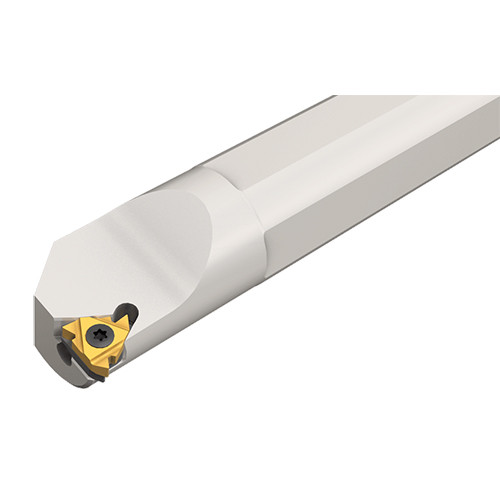

Internal threading boring bars. (AD-short bars for adaptor holders)

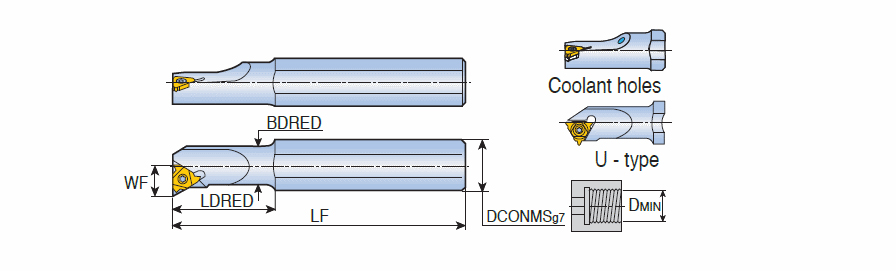

| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | Internal Threading | |
| Functional Length (LF) | 18 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 9 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | Internal threading boring bars. (AD-short bars for adaptor holders) | FamilyName | SIR/L |

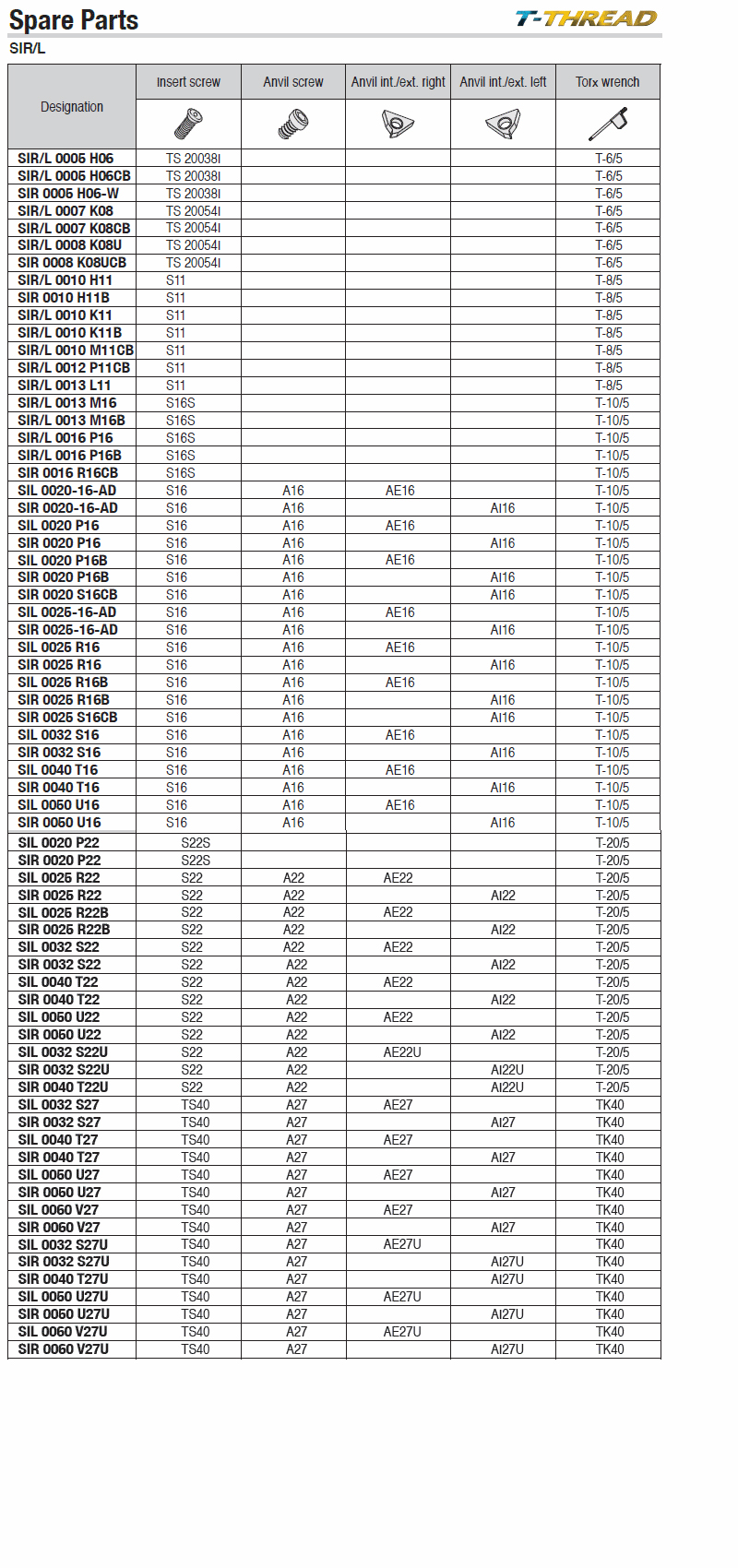

| Remarks | For multi tooth inserts use anvils AI16M, AI22M, AI27M All Toolholders are made with 1.5 deg. helix angle | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.1850
Name
Indexable Internal Turning Tools
FamilyName
SIR/L
BrandName
Taegutec
