S12M SVJCR 08-D16
TOPMINI screw type boring bars with positive 35° Rhombic inserts of 7° clearance angle and 142° approach angle for small components machining

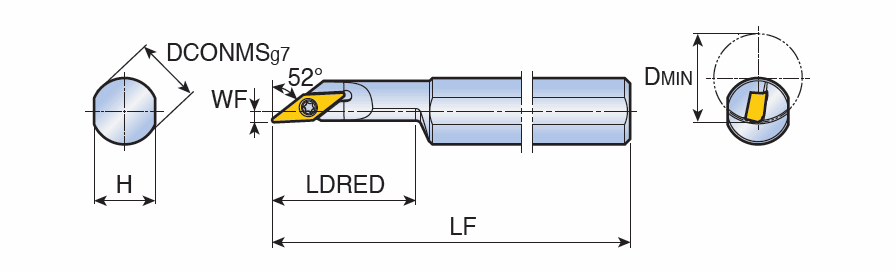

| Connection Diameter Machine Side (DCONMS) | 12 mm | Application | | Int 142° App 35° Diamond | |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Reduced Body Diameter Length (LDRED) | 26 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 16 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | TOPMINI screw type boring bars with positive 35° Rhombic inserts of 7° clearance angle and 142° approach angle for small components machining | FamilyName | S-SVJCR/L-D |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.1300
Name
Indexable Internal Turning Tools
FamilyName
S-SVJCR/L-D
BrandName
Taegutec
