S20S SDUCR 11

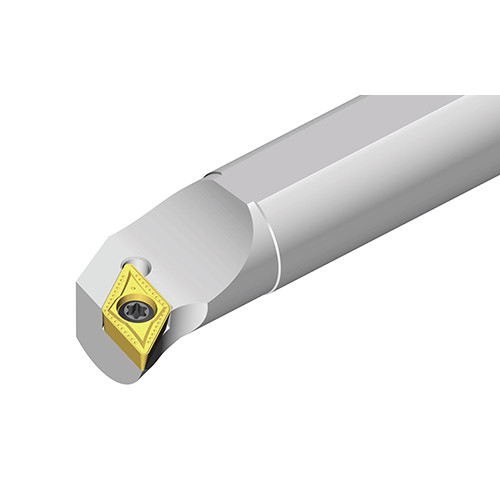

Screw type boring bars for positive 55° Rhombic inserts of 7° clearance angle with 93° approach angle

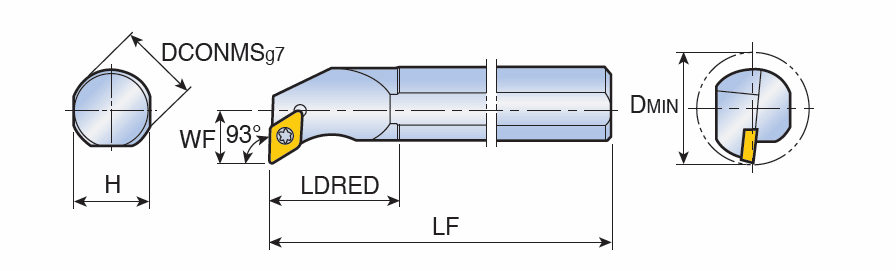

| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | | Int 100° App 70° Diamond | Int 93° App 55° Diamond | |
| Functional Length (LF) | 250 mm | Body Material | Steel |
| Reduced Body Diameter Length (LDRED) | 32 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 25 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Screw type boring bars for positive 55° Rhombic inserts of 7° clearance angle with 93° approach angle | FamilyName | S-SDUCR/L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.6150
Name
Indexable Internal Turning Tools
FamilyName
S-SDUCR/L
BrandName
Taegutec
