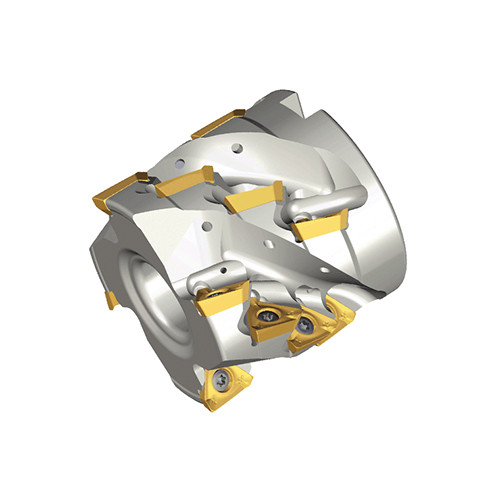

3P TES D63-42-27R-19-4F
Extended flute shell mills with 3PKT 19 inserts of positive 3 helical cutting edges

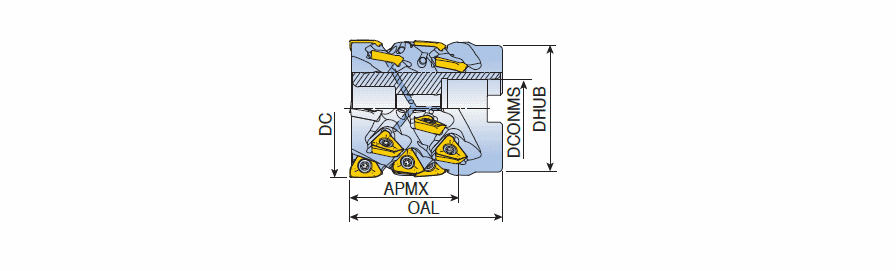

Application | | Shouldering | Slotting | | Number of Teeth | 12 |
Depth of Cut Maximum (APMX) | 42 mm | Master Insert Identification (MIID) | 3PKT 190608R-M |
Cutting Diameter (DC) | 63 mm | Measurement Type | Metric |
Connection Diameter Machine Side (DCONMS) | 27 mm | Body Material | Steel |
Flute Count (NOF) | 4 | Unit | M |
Overall Length (OAL) | 70 mm |

Product Features
Family Description | Extended flute shell mills with 3PKT 19 inserts of positive 3 helical cutting edges | FamilyName | 3P TES-19 |
Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
COO | S.KOREA |
Shipping Info
Weight per item
1.3900
Name
Shell Mills
FamilyName
3P TES-19
BrandName
Taegutec
