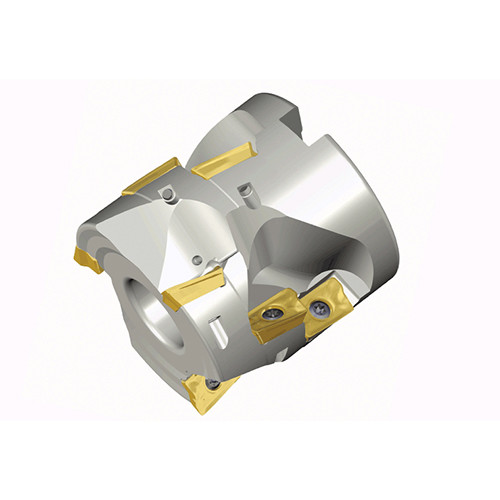

TES D63-44-27-AP17
Extended flute shell mills with helical two cutting edges inserts of AP.. 17

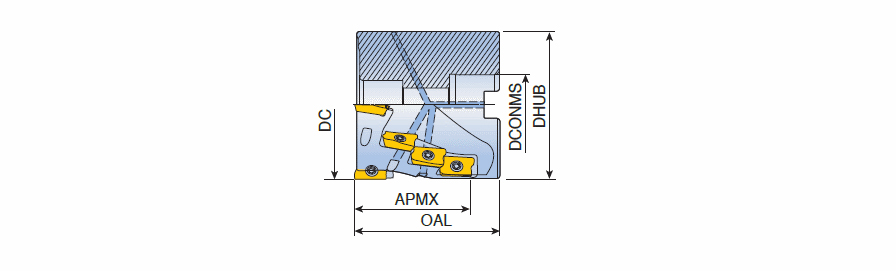

| Application | | Shouldering | Slotting | Trochoidal Milling | | Number of Teeth | 9 |
| Depth of Cut Maximum (APMX) | 44 mm | Master Insert Identification (MIID) | APKT 1705 PER-EM |
| Cutting Diameter (DC) | 63 mm | Arbor Style | A |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Body Material | Steel |
| Overall Length (OAL) | 63 mm | Unit | M |
Product Features
| Family Description | Extended flute shell mills with helical two cutting edges inserts of AP.. 17 | FamilyName | TES-AP17 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
1.4400
Name
Shell Mills
FamilyName
TES-AP17
BrandName
Taegutec
