TES D50-29-22-11

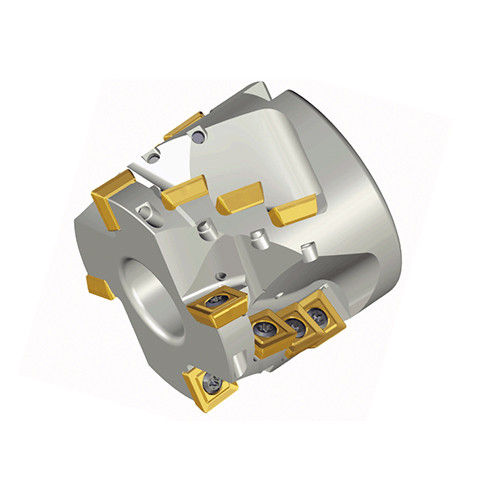

Extended flute shell mill with positive SPMT or SPMG 11/14 inserts of 4 cutting edges in full effectiveness
| Application | | Shouldering | Slotting | | Number of Teeth | 9 |

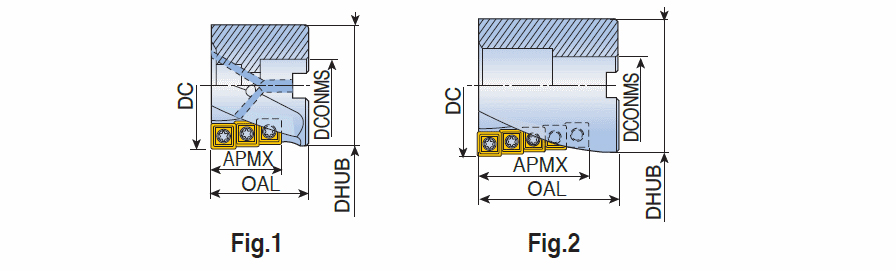

| Depth of Cut Maximum (APMX) | 29 mm | Master Insert Identification (MIID) | SPMT 110408-EM |
| Cutting Diameter (DC) | 50 mm | Arbor Style | A |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Body Material | Steel |
| Overall Length (OAL) | 52 mm | Unit | M |
Product Features
| Family Description | Extended flute shell mill with positive SPMT or SPMG 11/14 inserts of 4 cutting edges in full effectiveness | FamilyName | TES-11/14 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.9900
Name
Shell Mills
FamilyName
TES-11/14
BrandName
Taegutec
