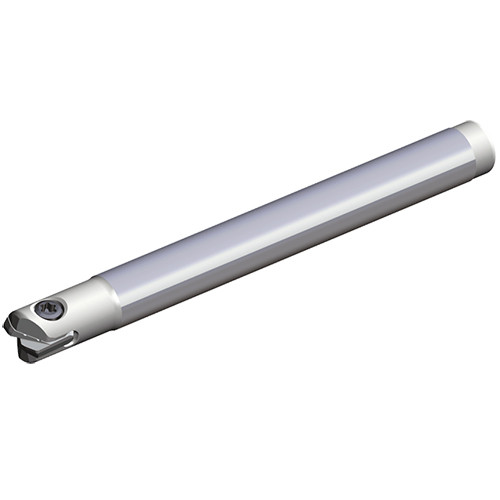

THFN 080-12-L140
Nano High Feed end mills with High Feed HFN inserts & internal coolant for miniature components

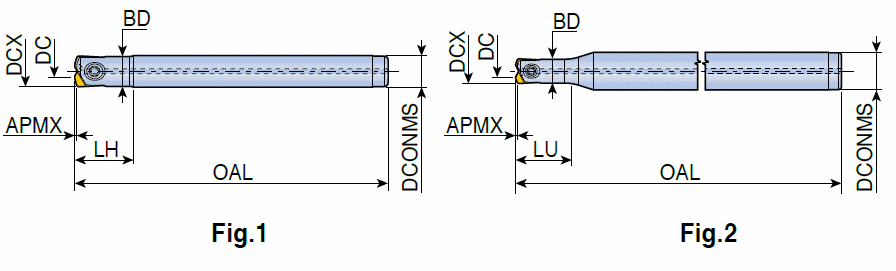

| Cutting Diameter (DC/DCX) | 8 mm | Master Insert Identification (MIID) | HFN 080-M |
| Cutting Diameter (DC) | 4 mm | Head Length (LH) | - |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 18 mm |
| Depth of Cut Maximum (APMX) | 0.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 140 mm | Body Material | Steel |
| Shank Type | Round | Cutting Diameter Maximum (DCX) | 8 mm |
| Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
Product Features
| Family Description | Nano High Feed end mills with High Feed HFN inserts & internal coolant for miniature components | FamilyName | THFN |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.1750
Name
Indexable End Mills
FamilyName
THFN
BrandName
Taegutec
